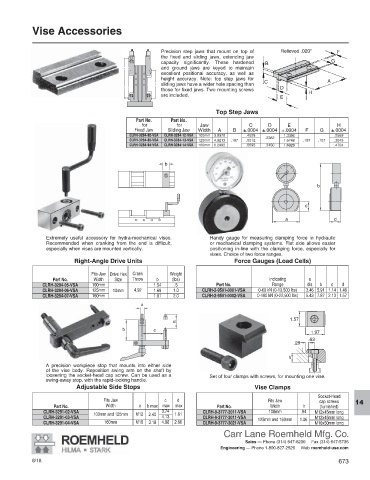

Vise Accessories

Precision step jaws that mount on top of Relieved .020” F
the fixed and sliding jaws, extending jaw
capacity significantly. These hardened B G
and ground jaws are keyed to maintain
excellent positional accuracy, as well as
height accuracy. Note: top step jaws for
C A
sliding jaws have a wider hole spacing than
those for fixed jaws. Two mounting screws D
are included. H
E
Top Step Jaws
Part No. Part No.
for for Jaw C D E H
Fixed Jaw Sliding Jaw Width A B ±.0004 ±.0004 ±.0004 F G ±.0004
CLRH-3284-02-VSA CLRH-3284-12-VSA 100mm 3.9370 .4528 1.3386 .2559
CLRH-3284-03-VSA CLRH-3284-13-VSA 125mm 4.9213 .197 .5512 .2362 1.5748 .197 .157 .3543
CLRH-3284-04-VSA CLRH-3284-14-VSA 160mm 6.2992 .6693 .3150 1.6929 .4724

b

b

c

a d

Extremely useful accessory for hydra-mechanical vises. Handy gauge for measuring clamping force in hydraulic
Recommended when cranking from the end is difficult, or mechanical clamping systems. Flat side allows easier
especially when vises are mounted vertically. positioning in-line with the clamping force, especially for
vises. Choice of two force ranges.
Right-Angle Drive Units Force Gauges (Load Cells)

Fits Jaw Drive Hex Crank Weight
Part No. Width Size Throw b (lbs) Indicating a
CLRH-3294-05-VSA 100mm 1.54 .5 Part No. Range dia b c d
CLRH-3294-06-VSA 125mm 10mm 4.92 1.69 1.0 CLRH-2-9501-0001-VSA 0-60 kN (0-13,500 lbs) 3.46 5.91 1.14 1.46
CLRH-3294-07-VSA 160mm 1.81 2.0 CLRH-2-9501-0002-VSA 0-100 kN (0-22,500 lbs) 5.43 7.87 2.13 1.57
a

1.57
d
b c
1.97
.63
.28
h
A precision workpiece stop that mounts into either side
of the vise body. Reposition swing arm on the shaft by
loosening the socket-head cap screw. Can be used as a Set of four clamps with screws, for mounting one vise.
swing-away stop, with the rapid-locking handle.
Adjustable Side Stops Vise Clamps
Socket-Head
Fits Jaw c d Fits Jaw cap screws
Part No. Width a b max max max Part No. Width h (furnished) 14
CLRH-3291-02-VSA 100mm and 125mm M12 2.40 3.74 1.81 CLRH-9-3777-2011-VSA 100mm .94 M12x45mm long
CLRH-3291-03-VSA 4.13 CLRH-9-3777-3011-VSA 125mm and 160mm 1.06 M12x45mm long
CLRH-3291-04-VSA 160mm M16 3.19 4.88 2.60 CLRH-9-3777-3021-VSA M16x50mm long
