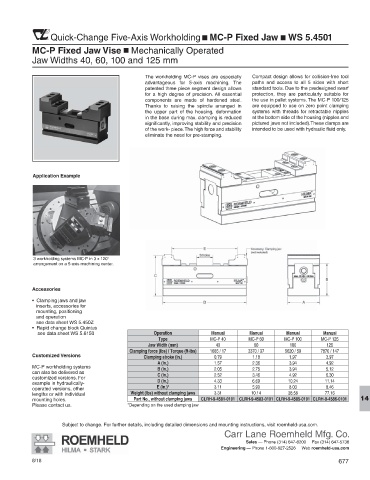

Quick-Change Five-Axis Workholding J MC-P Fixed Jaw J WS 5.4501

MC-P Fixed Jaw Vise Mechanically Operated
J
Jaw Widths 40, 60, 100 and 125 mm

The workholding MC-P vises are especially Compact design allows for collision-free tool
advantageous for 5-axis machining. The paths and access to all 5 sides with short
patented three piece segment design allows standard tools. Due to the predesigned swarf
for a high degree of precision. All essential protection, they are particularly suitable for
components are made of hardened steel. the use in pallet systems. The MC-P 100/125
Thanks to raising the spindle arranged in are equipped to use on zero point clamping
the upper part of the housing, deformation systems with threads for retractable nipples
in the base during max. clamping is reduced at the bottom side of the housing (nipples and
significantly, improving stability and precision pictured jaws not included).These clamps are
of the work- piece. The high force and stability intended to be used with hydraulic fluid only.
eliminate the need for pre-stamping.

Application Example

3 workholding systems MC-P in 3 x 120°
arrangement on a 5-axis machining center.

Accessories

• Clamping jaws and jaw
inserts, accessories for
mounting, positioning
and operation
see data sheet WS 5.450Z
• Rapid change block Quintus
see data sheet WS 5.6150 Operation Manual Manual Manual Manual
Type MC-P 40 MC-P 60 MC-P 100 MC-P 125
Jaw Width (mm) 40 60 100 125
Clamping force (lbs) / Torque (ft-lbs) 1685 / 17 3370 / 37 5620 / 59 7870 / 147
Customized Versions Clamping stroke (in.) 0.79 1.18 1.97 3.97
A (in.) 1.57 2.36 3.94 4.92
MC-P workholding systems B (in.) 2.05 2.75 3.94 5.12
can also be delivered as C (in.) 2.52 3.46 4.92 6.30
customized versions. For
example in hydraulically- D (in.) 4.33 6.69 10.24 11.14
operated versions, other E (in.)* 3.11 5.90 8.03 8.46
lengths or with individual Weight (lbs) without clamping jaws 3.31 10.14 38.58 77.16
mounting holes. Part No., without clamping jaws CLRH-9-4581-0101 CLRH-9-4583-0101 CLRH-9-4585-0101 CLRH-9-4586-0101 14
Please contact us. *Depending on the used clamping jaw

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
