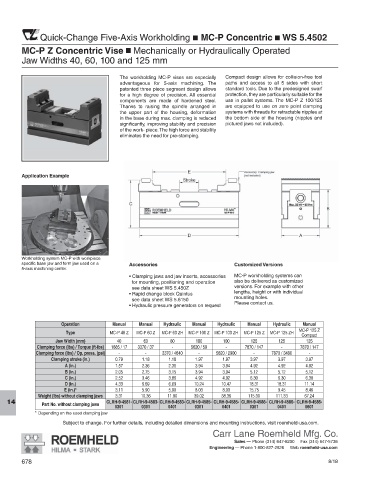

Quick-Change Five-Axis Workholding J MC-P Concentric WS 5.4502
J
MC-P Z Concentric Vise Mechanically or Hydraulically Operated
J
Jaw Widths 40, 60, 100 and 125 mm

The workholding MC-P vises are especially Compact design allows for collision-free tool
advantageous for 5-axis machining. The paths and access to all 5 sides with short
patented three piece segment design allows standard tools. Due to the predesigned swarf
for a high degree of precision. All essential protection, they are particularly suitable for the
components are made of hardened steel. use in pallet systems. The MC-P Z 100/125
Thanks to raising the spindle arranged in are equipped to use on zero point clamping
the upper part of the housing, deformation systems with threads for retractable nipples at
in the base during max. clamping is reduced the bottom side of the housing (nipples and
significantly, improving stability and precision pictured jaws not included).
of the work- piece. The high force and stability
eliminates the need for pre-stamping.

Application Example

Workholding system MC-P with workpiece
specific base jaw and form jaw used on a Accessories Customized Versions
5-axis machining center.
• Clamping jaws and jaw inserts, accessories MC-P workholding systems can
for mounting, positioning and operation also be delivered as customized
see data sheet WS 5.450Z versions. For example with other
lengths, height or with individual
• Rapid change block Quintus
mounting holes.
see data sheet WS 5.6150
Please contact us.
• Hydraulic pressure generators on request
Operation Manual Manual Hydraulic Manual Hydraulic Manual Hydraulic Manual
MC-P 125 Z
Type MC-P 40 Z MC-P 60 Z MC-P 60 ZH MC-P 100 Z MC-P 100 ZH MC-P 125 Z MC-P 125 ZH
Compact
Jaw Width (mm) 40 60 60 100 100 125 125 125
Clamping force (lbs) / Torque (ft-lbs) 1685 / 17 3370 / 37 - 5620 / 59 - 7870 / 147 - 7870 / 147
Clamping force (lbs) / Op. press. (psi) - - 3370 / 4640 - 5620 / 2900 - 7870 / 3480 -
Clamping stroke (in.) 0.79 1.18 1.18 1.97 1.97 3.97 3.97 3.97
A (in.) 1.57 2.36 2.36 3.94 3.94 4.92 4.92 4.92
B (in.) 2.05 2.75 3.15 3.94 3.94 5.12 5.12 5.12
C (in.) 2.52 3.46 3.86 4.92 4.92 6.30 6.30 6.30
D (in.) 4.33 6.69 6.69 10.24 10.47 18.31 18.31 11.14
E (in.)* 3.11 5.90 5.90 8.03 8.03 15.75 9.45 8.46
Weight (lbs) without clamping jaws 3.31 10.36 11.90 39.02 38.36 115.30 111.33 67.24
CLRH-9-4581- CLRH-9-4583- CLRH-9-4583- CLRH-9-4585- CLRH-9-4585- CLRH-9-4586- CLRH-9-4586- CLRH-9-4586-
14 Part No. without clamping jaws
0301 0301 0401 0301 0401 0301 0401 0601
* Depending on the used clamping jaw
Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
