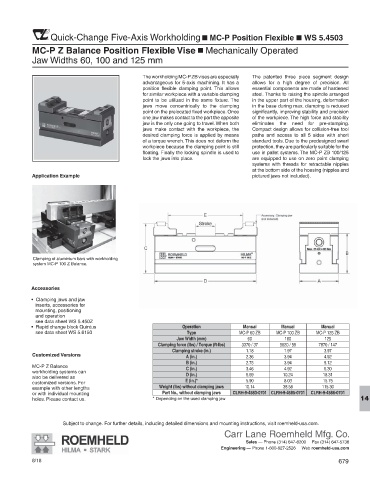

Quick-Change Five-Axis Workholding J MC-P Position Flexible J WS 5.4503

MC-P Z Balance Position Flexible Vise Mechanically Operated
J
Jaw Widths 60, 100 and 125 mm

The workholding MC-P ZB vises are especially The patented three piece segment design
advantageous for 5-axis machining. It has a allows for a high degree of precision. All
position flexible clamping point. This allows essential components are made of hardened
for similar workpiece with a variable clamping steel. Thanks to raising the spindle arranged
point to be utilized in the same fixture. The in the upper part of the housing, deformation
jaws move concentrically to the clamping in the base during max. clamping is reduced
point on the prelocated fixed workpiece. Once significantly, improving stability and precision
one jaw makes contact to the part the opposite of the workpiece. The high force and stability
jaw is the only one going to travel. When both eliminates the need for pre-stamping.
jaws make contact with the workpiece, the Compact design allows for collision-free tool
desired clamping force is applied by means paths and access to all 5 sides with short
of a torque wrench. This does not deform the standard tools. Due to the predesigned swarf
workpiece because the clamping point is still protection, they are particularly suitable for the
floating. Finally the locking spindle is used to use in pallet systems. The MC-P ZB 100/125
lock the jaws into place. are equipped to use on zero point clamping
systems with threads for retractable nipples
at the bottom side of the housing (nipples and
Application Example pictured jaws not included).

Clamping of aluminium bars with workholding
system MC-P 100 Z Balance.

Accessories
• Clamping jaws and jaw
inserts, accessories for
mounting, positioning
and operation
see data sheet WS 5.450Z
• Rapid change block Quintus Operation Manual Manual Manual
see data sheet WS 5.6150 Type MC-P 60 ZB MC-P 100 ZB MC-P 125 ZB
Jaw Width (mm) 60 100 125
Clamping force (lbs) / Torque (ft-lbs) 3370 / 37 5620 / 59 7870 / 147
Clamping stroke (in.) 1.18 1.97 3.97
Customized Versions A (in.) 2.36 3.94 4.92
B (in.) 2.75 3.94 5.12
MC-P Z Balance C (in.) 3.46 4.92 6.30
workholding systems can
also be delivered as D (in.) 6.69 10.24 18.31
customized versions. For E (in.)* 5.90 8.03 15.75
example with other lengths Weight (lbs) without clamping jaws 10.14 38.58 115.30
or with individual mounting Part No., without clamping jaws CLRH-9-4583-0701 CLRH-9-4585-0701 CLRH-9-4586-0701
holes. Please contact us. * Depending on the used clamping jaw 14

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
