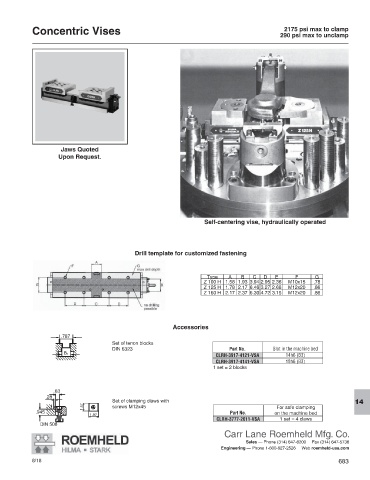

Concentric Vises 2175 psi max to clamp
290 psi max to unclamp

Jaws Quoted
Upon Request.

Self-centering vise, hydraulically operated

Drill template for customized fastening

Type A B C D E F G
Z 100 H 1.58 1.93 3.94 2.95 2.36 M10x15 .78
Z 125 H 1.78 2.17 6.46 3.27 2.68 M12x20 .86
Z 160 H 2.17 2.37 6.30 4.72 3.15 M12x20 .86

Accessories
.787
Set of tenon blocks
DIN 6323 Part No. Slot in the machine bed
B3 14h6 (B3)
CLRH-3917-4121-VSA
CLRH-3917-4141-VSA 18h6 (B3)
1 set = 2 blocks

.63
.28
Set of clamping claws with
1.57 screws M12x45 For safe clamping 14
.945 Part No. on the machine bed
1.97
CLRH-3777-2011-VSA 1 set = 4 claws
DIN 508
Carr Lane Roemheld Mfg. Co.
Sales — Phone (314) 647-6200 Fax (314) 647-5736
Engineering — Phone 1-800-827-2526 Web roemheld-usa.com
8/18 683
