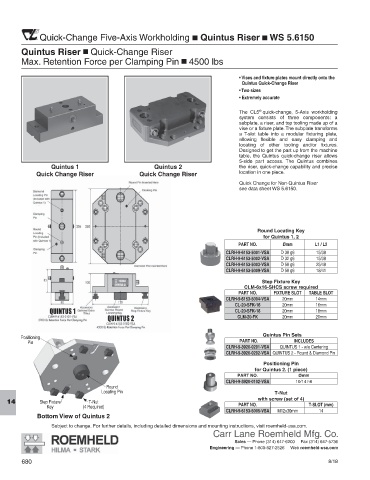

Quick-Change Five-Axis Workholding J Quintus Riser J WS 5.6150

Quintus Riser Quick-Change Riser
J
Max. Retention Force per Clamping Pin 4500 lbs
J

• Vises and fixture plates mount directly onto the
Quintus Quick-Change Riser
• Two sizes
• Extremely accurate

®
The CL5 quick-change, 5-Axis workholding
system consists of three components: a
subplate, a riser, and top tooling made up of a
vise or a fixture plate. The subplate transforms
a T-slot table into a modular fixturing plate,
allowing flexible and easy clamping and
locating of other tooling and/or fixtures.
Designed to get the part up from the machine
table, the Quintus quick-change riser allows
5-side part access. The Quintus combines
Quintus 1 Quintus 2 the riser, quick-change capability and precise
Quick Change Riser Quick Change Riser location in one piece.
Quick Change for Non-Quintus Riser
see data sheet WS 5.6150.

Round Locating Key
for Quintus 1, 2
PART NO. Ømm L1 / L2
CLRH-9-6153-5001-VSA D 30 g6 15/38
CLRH-9-6153-5002-VSA D 32 g6 15/38
CLRH-9-6153-5003-VSA D 50 g6 25/48
CLRH-9-6153-5009-VSA D 50 g6 18/41

Step Fixture Key
CLM-6x16-SHCS screw required
PART NO. FIXTURE SLOT TABLE SLOT
CLRH-9-6153-5004-VSA 20mm 14mm
CL-20-SFK-16 20mm 16mm
CL-20-SFK-18 20mm 18mm
CLM-20-FK 20mm 20mm

Quintus Pin Sets
Positioning
Pin PART NO. INCLUDES
CLRH-9-3920-0201-VSA QUINTUS 1 - w/o Centering
CLRH-9-3920-0202-VSA QUINTUS 2 - Round & Diamond Pin
Positioning Pin
for Quintus 2. (1 piece)
PART NO. Ømm
CLRH-9-3920-0102-VSA 10/14 h6
Round
Locating Pin T-Nut
with screw (set of 4)
Step Fixture T-Nut
14 PART NO. T-SLOT (mm)
Key (4 Required)
CLRH-9-6153-5005-VSA M12x30mm 14
Bottom View of Quintus 2
Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
