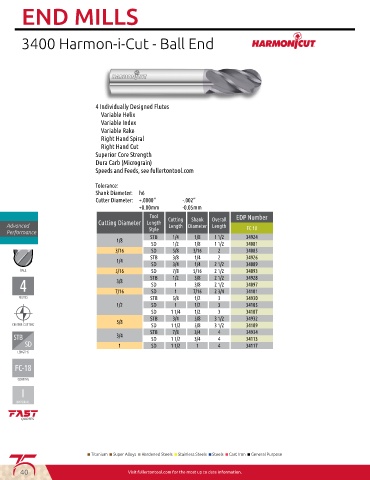

Page 42 - 75th-Online-Anniversary-Catalog

END MILLS

3400 Harmon-i-Cut - Ball End

4 Individually Designed Flutes
Variable Helix
Variable Index
Variable Rake
Right Hand Spiral
Right Hand Cut
Superior Core Strength
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Advanced Length Diameter Length FC 18
Performance Style
1/8 STB 1/4 1/8 1 1/2 34924
SD 1/2 1/8 1 1/2 34081
3/16 SD 5/8 3/16 2 34085
STB 3/8 1/4 2 34926
1/4
SD 3/4 1/4 2 1/2 34089
5/16 SD 7/8 5/16 2 1/2 34093
STB 1/2 3/8 2 1/2 34928
3/8
SD 1 3/8 2 1/2 34097
7/16 SD 1 7/16 2 3/4 34101
STB 5/8 1/2 3 34930
1/2 SD 1 1/2 3 34105
SD 1 1/4 1/2 3 34107
STB 3/4 5/8 3 1/2 34932
5/8
SD 1 1/2 5/8 3 1/2 34109
STB 7/8 3/4 4 34934
3/4
SD 1 1/2 3/4 4 34113
1 SD 1 1/2 1 4 34117

I
IMPERIAL

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

40 Visit fullertontool.com for the most up to date information.
