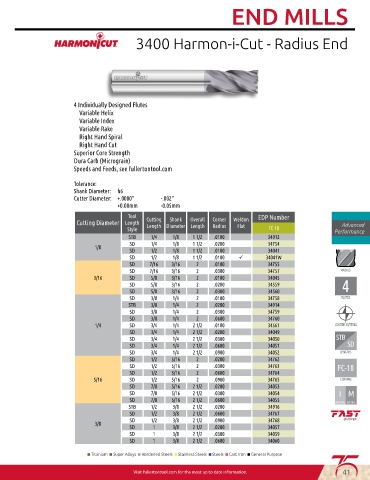

Page 43 - 75th-Online-Anniversary-Catalog

END MILLS

3400 Harmon-i-Cut - Radius End

4 Individually Designed Flutes
Variable Helix
Variable Index
Variable Rake
Right Hand Spiral
Right Hand Cut
Superior Core Strength
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner Weldon Advanced
Length Diameter Length
Radius
Flat
Style FC 18 Performance
STB 1/4 1/8 1 1/2 .0100 34912
SD 1/4 1/8 1 1/2 .0200 34754
1/8
SD 1/2 1/8 1 1/2 .0100 34041
SD 1/2 1/8 1 1/2 .0100 ü 34041W
SD 7/16 3/16 2 .0100 34755
SD 7/16 3/16 2 .0300 34757
3/16 SD 5/8 3/16 2 .0100 34045
SD 5/8 3/16 2 .0200 34559
SD 5/8 3/16 2 .0300 34560
SD 3/8 1/4 2 .0100 34758
STB 3/8 1/4 2 .0200 34914
SD 3/8 1/4 2 .0300 34759
SD 3/8 1/4 2 .0600 34760
1/4 SD 3/4 1/4 2 1/2 .0100 34561
SD 3/4 1/4 2 1/2 .0200 34049
SD 3/4 1/4 2 1/2 .0300 34050
SD 3/4 1/4 2 1/2 .0600 34051
SD 3/4 1/4 2 1/2 .0900 34052
SD 1/2 5/16 2 .0200 34762
SD 1/2 5/16 2 .0300 34763
SD 1/2 5/16 2 .0600 34764
5/16 SD 1/2 5/16 2 .0900 34765
SD 7/8 5/16 2 1/2 .0200 34053
SD 7/8 5/16 2 1/2 .0300 34054 I M
SD 7/8 5/16 2 1/2 .0600 34055 IMPERIAL METRIC
STB 1/2 3/8 2 1/2 .0200 34916
SD 1/2 3/8 2 1/2 .0600 34767
SD 1/2 3/8 2 1/2 .0900 34768
3/8
SD 1 3/8 2 1/2 .0200 34057
SD 1 3/8 2 1/2 .0300 34059
SD 1 3/8 2 1/2 .0600 34060

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

Visit fullertontool.com for the most up to date information. 41
