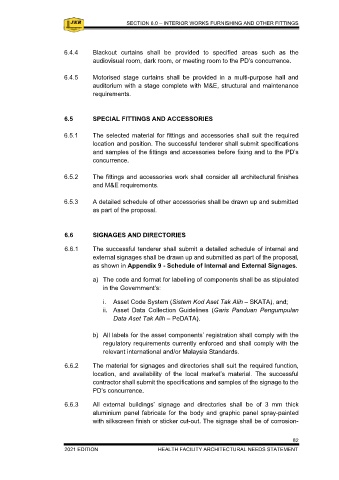

SECTION 6.0 – INTERIOR WORKS FURNISHING AND OTHER FITTINGS
6.4.4 Blackout curtains shall be provided to specified areas such as the
audiovisual room, dark room, or meeting room to the PD’s concurrence.
6.4.5 Motorised stage curtains shall be provided in a multi-purpose hall and
auditorium with a stage complete with M&E, structural and maintenance
requirements.
6.5 SPECIAL FITTINGS AND ACCESSORIES
6.5.1 The selected material for fittings and accessories shall suit the required
location and position. The successful tenderer shall submit specifications
and samples of the fittings and accessories before fixing and to the PD’s
concurrence.
6.5.2 The fittings and accessories work shall consider all architectural finishes
and M&E requirements.
6.5.3 A detailed schedule of other accessories shall be drawn up and submitted
as part of the proposal.
6.6 SIGNAGES AND DIRECTORIES
6.6.1 The successful tenderer shall submit a detailed schedule of internal and
external signages shall be drawn up and submitted as part of the proposal,
as shown in Appendix 9 - Schedule of Internal and External Signages.
a) The code and format for labelling of components shall be as stipulated
in the Government’s:
i. Asset Code System (Sistem Kod Aset Tak Alih – SKATA), and;
ii. Asset Data Collection Guidelines (Garis Panduan Pengumpulan
Data Aset Tak Alih – PeDATA).
b) All labels for the asset components’ registration shall comply with the
regulatory requirements currently enforced and shall comply with the
relevant international and/or Malaysia Standards.
6.6.2 The material for signages and directories shall suit the required function,
location, and availability of the local market’s material. The successful
contractor shall submit the specifications and samples of the signage to the
PD’s concurrence.
6.6.3 All external buildings’ signage and directories shall be of 3 mm thick
aluminium panel fabricate for the body and graphic panel spray-painted
with silkscreen finish or sticker cut-out. The signage shall be of corrosion-
82
2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT
SECTION 6.0 – INTERIOR WORKS FURNISHING AND OTHER FITTINGS
free and weather proof material, and the size of the signage shall be not
less than 2100 mm (height) x 1200 mm (width).
6.6.4 All road signage shall be well-coordinated and following the latest Arahan
Teknik Jalan (ATJ) by Cawangan Jalan, JKR.
6.6.5 The design and selection of internal and external signage shall be well-
coordinated with the PD’s concurrence.
6.6.6 Signage and directories for the main lobby/ lobbies of a new building and
renovated existing building shall be well-coordinated with the overall
concept and place at the visitors’ eye-level. It shall be designed with high
contrast for the visually impaired.
6.6.7 The language used on the signage shall be of the Client’s requirements.
The Client shall provide detailed information on the buildings and the
department’s designation.
6.6.8 All fire and M&E signs shall be minimum of 4 mm clear acrylic and spray-
painted with silkscreen finish or sticker cut-out. The signages’ size shall be
not less than 58 mm (height) x 250 mm (width) and shall comply with the
JBPM’s requirements. All illuminated signs shall be of translucent graphic
films and shall also comply with the JBPM’s requirements.
6.6.9 All signage and directories shall be provided as required in the proposed
scope of works under as follows:
a) Projects main signboard and logo (details are to be provided by the
Client).
b) External directional signs to be located at external corridors, parking,
walkways and roads, buildings, sectional/blocks, and room names,
signs, or titles.
c) Internal directional signs to be located at departmental, internal
corridors, lobbies, room names (designations and name-plates), signs
to be provided as stated in the room list or SOA.
d) Escape routes and stairways as required by the JBPM.
e) Toilets, utility, and services rooms (e.g., rooms for M&E installation,
stores, cleaners, etc.)
6.6.10 All general signages (e.g., toilet signs, ablution, etc.) shall be a minimum of
4 mm clear acrylic and spray-painted with silkscreen finish or sticker cut-
out. The suitable sizes of the signage shall be proposed by the tenderer
and to the PD’s concurrence.
