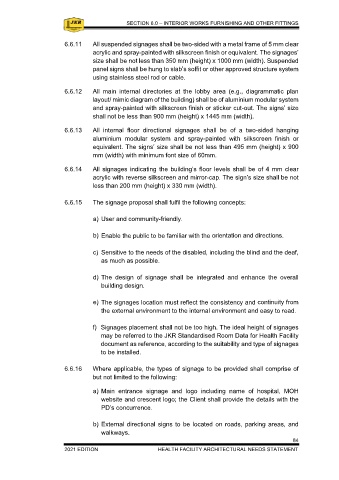

SECTION 6.0 – INTERIOR WORKS FURNISHING AND OTHER FITTINGS
6.6.11 All suspended signages shall be two-sided with a metal frame of 5 mm clear
acrylic and spray-painted with silkscreen finish or equivalent. The signages’
size shall be not less than 350 mm (height) x 1000 mm (width). Suspended
panel signs shall be hung to slab’s soffit or other approved structure system
using stainless steel rod or cable.
6.6.12 All main internal directories at the lobby area (e.g., diagrammatic plan
layout/ mimic diagram of the building) shall be of aluminium modular system
and spray-painted with silkscreen finish or sticker cut-out. The signs’ size
shall not be less than 900 mm (height) x 1445 mm (width).
6.6.13 All internal floor directional signages shall be of a two-sided hanging
aluminium modular system and spray-painted with silkscreen finish or
equivalent. The signs’ size shall be not less than 495 mm (height) x 900
mm (width) with minimum font size of 60mm.
6.6.14 All signages indicating the building’s floor levels shall be of 4 mm clear
acrylic with reverse silkscreen and mirror-cap. The sign’s size shall be not
less than 200 mm (height) x 330 mm (width).
6.6.15 The signage proposal shall fulfil the following concepts:
a) User and community-friendly.
b) Enable the public to be familiar with the orientation and directions.
c) Sensitive to the needs of the disabled, including the blind and the deaf,
as much as possible.
d) The design of signage shall be integrated and enhance the overall
building design.
e) The signages location must reflect the consistency and continuity from
the external environment to the internal environment and easy to read.
f) Signages placement shall not be too high. The ideal height of signages
may be referred to the JKR Standardised Room Data for Health Facility
document as reference, according to the suitability and type of signages
to be installed.
6.6.16 Where applicable, the types of signage to be provided shall comprise of
but not limited to the following:
a) Main entrance signage and logo including name of hospital, MOH
website and crescent logo; the Client shall provide the details with the
PD’s concurrence.
b) External directional signs to be located on roads, parking areas, and
walkways.
84
2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT
SECTION 6.0 – INTERIOR WORKS FURNISHING AND OTHER FITTINGS
c) External statutory signs shall be coordinated with civil drawings.
d) Buildings’ label (Blok, Aras dan Ruang).
e) Buildings’ main directories.
f) Hospital Organization Board and corporate signage at main lobby
reception.
g) Internal directional signs at strategic locations.
h) Departmental location signs and sub-location signs.
i) Internal statutory signs (e.g., escape routes).
j) Door signs, i.e., room titles, numbers, designations, and name slots
where required (details shall be provided by the Client with the PD’s
concurrence).
k) M&E signage (shall be coordinated with M&E designs).
l) Portable signage where required.
m) Notices where required.
n) Room codes (as per architectural drawings) to be fixed on the left of the
top door frames or other suitable locations where there are no doors.
o) Floor location directories.
p) Lift lobby directories.
q) Floor numbers at lift lobbies and staircases where required.
r) Complex’s identification at the site’s highest point.
s) Event boards where required.
t) Running digital displays shall be coordinated with M&E designs, where
required.
u) JBPM signage requirements (e.g., fire exit, fire alarm, etc.) shall be
coordinated with M&E designs.
6.6.17 Pictogram/symbol of international standard and the worded sign shall be
provided where required for immediate impact:
