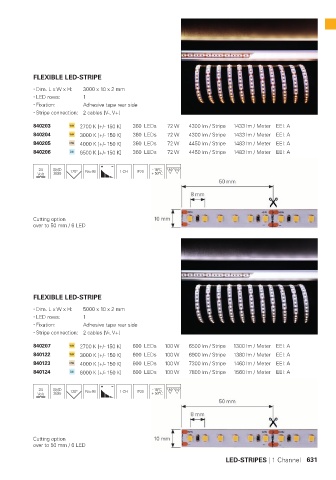

Page 632 - Deko-Light Light Impressions 2019-20
P. 632
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 10 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840203 2700 K [+/- 150 K] 360 LEDs 72 W 4300 lm / Stripe 1433 lm / Meter EEI: A
840204 3000 K [+/- 150 K] 360 LEDs 72 W 4300 lm / Stripe 1433 lm / Meter EEI: A
840205 4000 K [+/- 150 K] 360 LEDs 72 W 4450 lm / Stripe 1483 lm / Meter EEI: A
840206 6500 K [+/- 150 K] 360 LEDs 72 W 4450 lm / Stripe 1483 lm / Meter EEI: A
24 SMD 120° Ra>90 1 CH IP20 - 15°C M M
2835 + 50°C
Cutting option
over to 50 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 10 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840207 2700 K [+/- 150 K] 600 LEDs 100 W 6500 lm / Stripe 1300 lm / Meter EEI: A
840122 3000 K [+/- 150 K] 600 LEDs 100 W 6900 lm / Stripe 1380 lm / Meter EEI: A
840123 4000 K [+/- 150 K] 600 LEDs 100 W 7300 lm / Stripe 1460 lm / Meter EEI: A
840124 6000 K [+/- 150 K] 600 LEDs 100 W 7800 lm / Stripe 1560 lm / Meter EEI: A
24 SMD 120° Ra>90 1 CH IP20 - 15°C M M
2835 + 50°C
Cutting option
over to 50 mm / 6 LED
LED-STRIPES | 1 Channel 631
