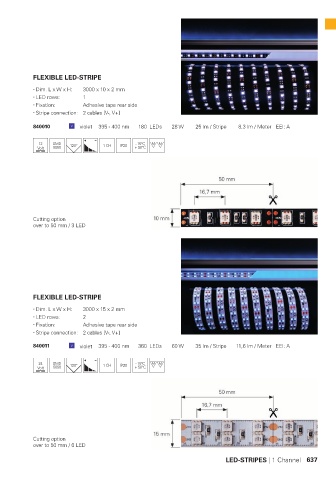

Page 638 - Deko-Light Light Impressions 2019-20
P. 638
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 10 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840010 V violet 395 - 400 nm 180 LEDs 28 W 25 lm / Stripe 8,3 lm / Meter EEI: A
12 SMD - 15°C M M
5050 120° 1 CH IP20 + 50°C
Cutting option
over to 50 mm / 3 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 15 x 2 mm
LED rows: 2
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840011 V violet 395 - 400 nm 360 LEDs 60 W 35 lm / Stripe 11,6 lm / Meter EEI: A
24 SMD 120° 1 CH IP20 - 15°C M M
5050 + 50°C
Cutting option
over to 50 mm / 6 LED
LED-STRIPES | 1 Channel 637
