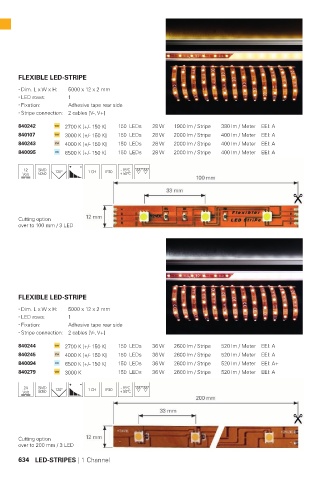

Page 635 - Deko-Light Light Impressions 2019-20
P. 635
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 12 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840242 2700 K [+/- 150 K] 150 LEDs 28 W 1900 lm / Stripe 380 lm / Meter EEI: A
840107 3000 K [+/- 150 K] 150 LEDs 28 W 2000 lm / Stripe 400 lm / Meter EEI: A
840243 4000 K [+/- 150 K] 150 LEDs 28 W 2000 lm / Stripe 400 lm / Meter EEI: A
840095 6500 K [+/- 150 K] 150 LEDs 28 W 2000 lm / Stripe 400 lm / Meter EEI: A
12 SMD - 15°C M M
5050 120° 1 CH IP20 + 50°C
Cutting option
over to 100 mm / 3 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 12 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840244 2700 K [+/- 150 K] 150 LEDs 36 W 2600 lm / Stripe 520 lm / Meter EEI: A
840245 4000 K [+/- 150 K] 150 LEDs 36 W 2600 lm / Stripe 520 lm / Meter EEI: A
840094 6500 K [+/- 150 K] 150 LEDs 36 W 2600 lm / Stripe 520 lm / Meter EEI: A+
840279 3000 K 150 LEDs 36 W 2600 lm / Stripe 520 lm / Meter EEI: A
24 SMD 120° 1 CH IP20 - 15°C M M
5050 + 50°C
Cutting option
over to 200 mm / 3 LED
634 LED-STRIPES | 1 Channel
