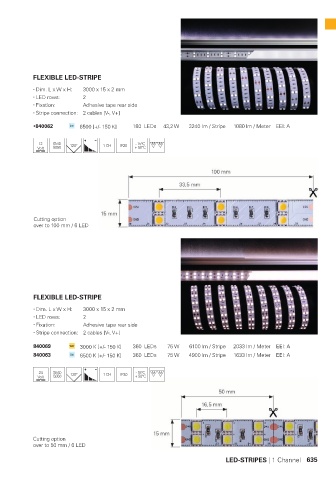

Page 636 - Deko-Light Light Impressions 2019-20
P. 636
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 15 x 2 mm
LED rows: 2
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840062 6500 [+/- 150 K] 180 LEDs 43,2 W 3240 lm / Stripe 1080 lm / Meter EEI: A
12 SMD - 15°C M M
5050 120° 1 CH IP20 + 50°C
Cutting option
over to 100 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 15 x 2 mm
LED rows: 2
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840069 3000 K [+/- 150 K] 360 LEDs 75 W 6100 lm / Stripe 2033 lm / Meter EEI: A
840063 6500 K [+/- 150 K] 360 LEDs 75 W 4900 lm / Stripe 1633 lm / Meter EEI: A
24 SMD 120° 1 CH IP20 - 15°C M M
5050 + 50°C
Cutting option
over to 50 mm / 6 LED
LED-STRIPES | 1 Channel 635
