Legacy Controls

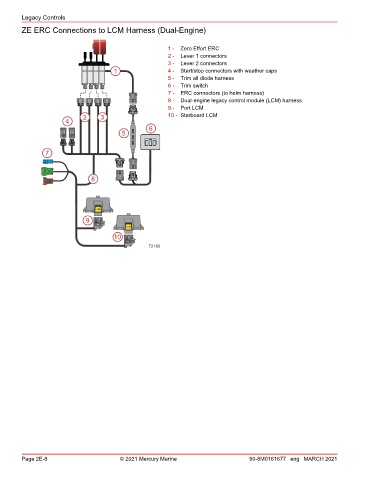

ZE ERC Connections to LCM Harness (Dual‑Engine)
1 - Zero Effort ERC
2 - Lever 1 connectors
3 - Lever 2 connectors
1 4 - Start/stop connectors with weather caps
5 - Trim all diode harness
6 - Trim switch
7 - ERC connectors (to helm harness)
8 - Dual‑engine legacy control module (LCM) harness
9 - Port LCM
2 3 10 - Starboard LCM
4
6
5
7
8
LCM
9
LCM
10
72180
Page 2E-8 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
