Legacy Controls

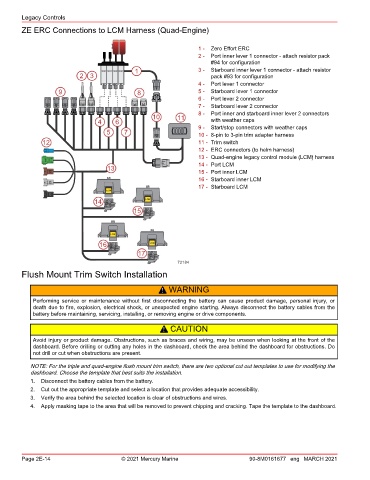

ZE ERC Connections to LCM Harness (Quad‑Engine)
1 - Zero Effort ERC
2 - Port inner lever 1 connector ‑ attach resistor pack
#94 for configuration
1 3 - Starboard inner lever 1 connector ‑ attach resistor
2 3 pack #93 for configuration
4 - Port lever 1 connector
9 8 5 - Starboard lever 1 connector
6 - Port lever 2 connector
7 - Starboard lever 2 connector
8 - Port inner and starboard inner lever 2 connectors
10 11
4 6 with weather caps
9 - Start/stop connectors with weather caps
5 7 10 - 8‑pin to 3‑pin trim adapter harness
12 11 - Trim switch
12 - ERC connectors (to helm harness)
13 - Quad‑engine legacy control module (LCM) harness
14 - Port LCM
13 15 - Port inner LCM
16 - Starboard inner LCM
17 - Starboard LCM
LCM
14 LCM
15
LCM
16 LCM
17
72184
Flush Mount Trim Switch Installation
! WARNING
Performing service or maintenance without first disconnecting the battery can cause product damage, personal injury, or
death due to fire, explosion, electrical shock, or unexpected engine starting. Always disconnect the battery cables from the
battery before maintaining, servicing, installing, or removing engine or drive components.
! CAUTION
Avoid injury or product damage. Obstructions, such as braces and wiring, may be unseen when looking at the front of the
dashboard. Before drilling or cutting any holes in the dashboard, check the area behind the dashboard for obstructions. Do
not drill or cut when obstructions are present.
NOTE: For the triple and quad‑engine flush mount trim switch, there are two optional cut out templates to use for modifying the
dashboard. Choose the template that best suits the installation.
1. Disconnect the battery cables from the battery.
2. Cut out the appropriate template and select a location that provides adequate accessibility.
3. Verify the area behind the selected location is clear of obstructions and wires.
4. Apply masking tape to the area that will be removed to prevent chipping and cracking. Tape the template to the dashboard.
