Page 86 - Installation Manual - GenII DTS

Helm Harnesses - Multi-Helm

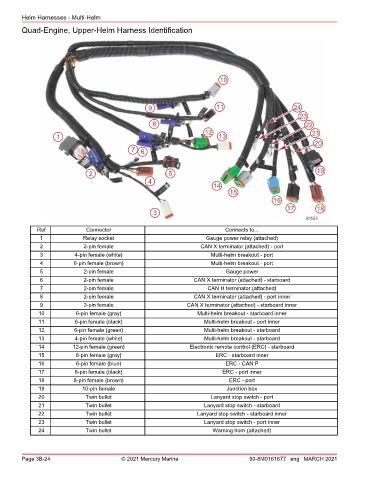

Quad‑Engine, Upper‑Helm Harness Identification

10

9 11 24
23
8 22
12 21
1 13
20
7 6

2 5 19
4
14
15
16
17 18
3
69523

Ref Connector Connects to...
1 Relay socket Gauge power relay (attached)
2 2‑pin female CAN X terminator (attached) ‑ port
3 4‑pin female (white) Multi‑helm breakout ‑ port
4 6‑pin female (brown) Multi‑helm breakout ‑ port
5 2‑pin female Gauge power
6 2‑pin female CAN X terminator (attached) ‑ starboard
7 2‑pin female CAN H terminator (attached)
8 2‑pin female CAN X terminator (attached) ‑ port inner
9 2‑pin female CAN X terminator (attached) ‑ starboard inner
10 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner
11 6‑pin female (black) Multi‑helm breakout ‑ port inner
12 6‑pin female (green) Multi‑helm breakout ‑ starboard
13 4‑pin female (white) Multi‑helm breakout ‑ starboard
14 12‑pin female (green) Electronic remote control (ERC) ‑ starboard
15 8‑pin female (gray) ERC ‑ starboard inner
16 6‑pin female (blue) ERC ‑ CAN P
17 8‑pin female (black) ERC ‑ port inner
18 8‑pin female (brown) ERC ‑ port
19 10‑pin female Junction box
20 Twin bullet Lanyard stop switch ‑ port
21 Twin bullet Lanyard stop switch ‑ starboard
22 Twin bullet Lanyard stop switch ‑ starboard inner
23 Twin bullet Lanyard stop switch ‑ port inner
24 Twin bullet Warning horn (attached)
