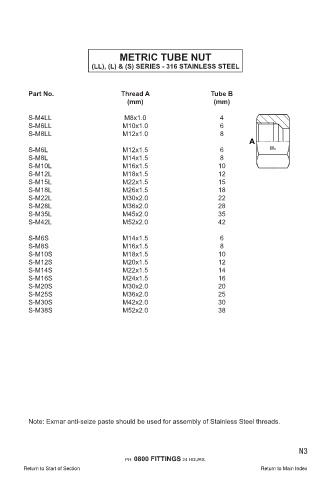

METRIC TUBE NUT
(LL), (L) & (S) SERIES - 316 STAINLESS STEEL

Part No. Thread A Tube B
(mm) (mm)

S-M4LL M8x1.0 4
S-M6LL M10x1.0 6
S-M8LL M12x1.0 8

S-M6L M12x1.5 6
S-M8L M14x1.5 8
S-M10L M16x1.5 10
S-M12L M18x1.5 12
S-M15L M22x1.5 15
S-M18L M26x1.5 18
S-M22L M30x2.0 22
S-M28L M36x2.0 28
S-M35L M45x2.0 35
S-M42L M52x2.0 42

S-M6S M14x1.5 6
S-M8S M16x1.5 8
S-M10S M18x1.5 10
S-M12S M20x1.5 12
S-M14S M22x1.5 14
S-M16S M24x1.5 16
S-M20S M30x2.0 20
S-M25S M36x2.0 25
S-M30S M42x2.0 30
S-M38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
