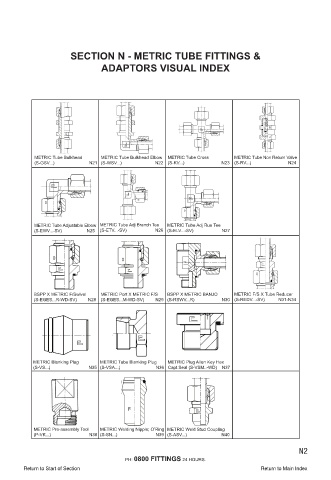

SECTION N - METRIC TUBE FITTINGS &
ADAPTORS VISUAL INDEX

METRIC Tube Bulkhead METRIC Tube Bulkhead Elbow METRIC Tube Cross METRIC Tube Non Return Valve
(S-GSV...) N21 (S-WSV...) N22 (S-KV...) N23 (S-RV...) N24

METRIC Tube Adjustable Elbow METRIC Tube Adj Branch Tee METRIC Tube Adj Run Tee
(S-EWV...-SV) N25 (S-ETV...-SV) N26 (S-ELV...-SV) N27

BSPP X METRIC F/Swivel METRIC Port X METRIC F/S BSPP X METRIC BANJO METRIC F/S X Tube Reducer
(S-EGES...R-WD-SV) N28 (S-EGES...M-WD-SV) N29 (S-RSWV...R) N30 (S-REDV...-SV) N31-N34

METRIC Blanking Plug METRIC Tube Blanking Plug METRIC Plug Allen Key Hex
(S-VS...) N35 (S-VSA...) N36 Capt Seal (S-VSM..-WD) N37

METRIC Pre-assembly Tool METRIC Welding Nipple; O’Ring METRIC Weld Stud Coupling
(P-VK...) N38 (S-SN...) N39 (S-ASV...) N40

N2
