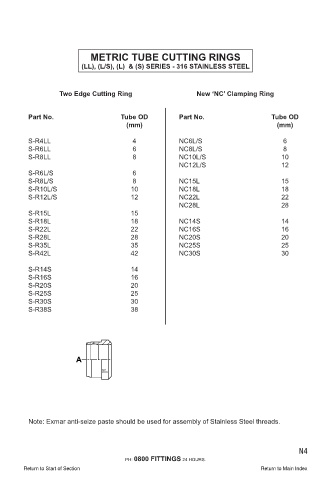

METRIC TUBE CUTTING RINGS
(LL), (L/S), (L) & (S) SERIES - 316 STAINLESS STEEL

Two Edge Cutting Ring New ‘NC’ Clamping Ring

Part No. Tube OD Part No. Tube OD
(mm) (mm)

S-R4LL 4 NC6L/S 6
S-R6LL 6 NC8L/S 8
S-R8LL 8 NC10L/S 10
NC12L/S 12
S-R6L/S 6
S-R8L/S 8 NC15L 15
S-R10L/S 10 NC18L 18
S-R12L/S 12 NC22L 22
NC28L 28
S-R15L 15
S-R18L 18 NC14S 14
S-R22L 22 NC16S 16
S-R28L 28 NC20S 20
S-R35L 35 NC25S 25
S-R42L 42 NC30S 30

S-R14S 14
S-R16S 16
S-R20S 20
S-R25S 25
S-R30S 30
S-R38S 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
