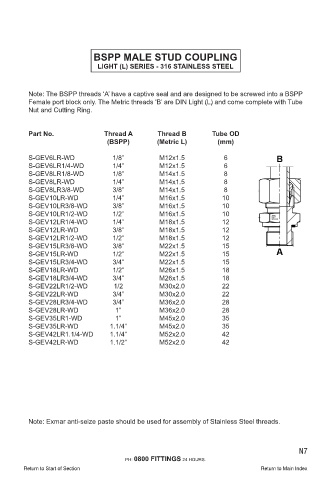

BSPP MALE STUD COUPLING
LIGHT (L) SERIES - 316 STAINLESS STEEL

Note: The BSPP threads ‘A’ have a captive seal and are designed to be screwed into a BSPP
Female port block only. The Metric threads ‘B’ are DIN Light (L) and come complete with Tube
Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(BSPP) (Metric L) (mm)

S-GEV6LR-WD 1/8” M12x1.5 6
S-GEV6LR1/4-WD 1/4” M12x1.5 6
S-GEV8LR1/8-WD 1/8” M14x1.5 8
S-GEV8LR-WD 1/4” M14x1.5 8
S-GEV8LR3/8-WD 3/8” M14x1.5 8
S-GEV10LR-WD 1/4” M16x1.5 10
S-GEV10LR3/8-WD 3/8” M16x1.5 10
S-GEV10LR1/2-WD 1/2” M16x1.5 10
S-GEV12LR1/4-WD 1/4” M18x1.5 12
S-GEV12LR-WD 3/8” M18x1.5 12
S-GEV12LR1/2-WD 1/2” M18x1.5 12
S-GEV15LR3/8-WD 3/8” M22x1.5 15
S-GEV15LR-WD 1/2” M22x1.5 15
S-GEV15LR3/4-WD 3/4” M22x1.5 15
S-GEV18LR-WD 1/2” M26x1.5 18
S-GEV18LR3/4-WD 3/4” M26x1.5 18
S-GEV22LR1/2-WD 1/2 M30x2.0 22
S-GEV22LR-WD 3/4” M30x2.0 22
S-GEV28LR3/4-WD 3/4” M36x2.0 28
S-GEV28LR-WD 1” M36x2.0 28
S-GEV35LR1-WD 1” M45x2.0 35
S-GEV35LR-WD 1.1/4” M45x2.0 35
S-GEV42LR1.1/4-WD 1.1/4” M52x2.0 42
S-GEV42LR-WD 1.1/2” M52x2.0 42

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
