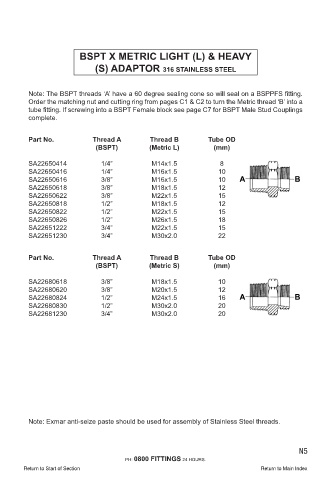

BSPT X METRIC LIGHT (L) & HEAVY

(S) ADAPTOR 316 STAINLESS STEEL

Note: The BSPT threads ‘A’ have a 60 degree sealing cone so will seal on a BSPPFS fitting.
Order the matching nut and cutting ring from pages C1 & C2 to turn the Metric thread ‘B’ into a
tube fitting. If screwing into a BSPT Female block see page C7 for BSPT Male Stud Couplings
complete.

Part No. Thread A Thread B Tube OD
(BSPT) (Metric L) (mm)

SA22650414 1/4” M14x1.5 8
SA22650416 1/4” M16x1.5 10
SA22650616 3/8” M16x1.5 10
SA22650618 3/8” M18x1.5 12
SA22650622 3/8” M22x1.5 15
SA22650818 1/2” M18x1.5 12
SA22650822 1/2” M22x1.5 15
SA22650826 1/2” M26x1.5 18
SA22651222 3/4” M22x1.5 15
SA22651230 3/4” M30x2.0 22

Part No. Thread A Thread B Tube OD
(BSPT) (Metric S) (mm)

SA22680618 3/8” M18x1.5 10
SA22680620 3/8” M20x1.5 12
SA22680824 1/2” M24x1.5 16
SA22680830 1/2” M30x2.0 20
SA22681230 3/4” M30x2.0 20

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
