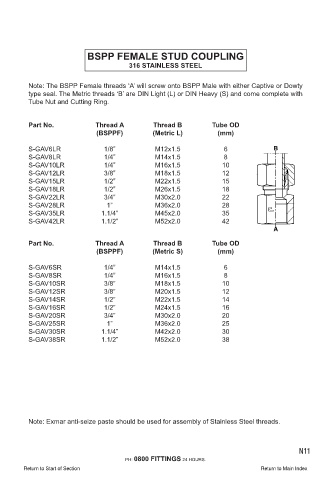

BSPP FEMALE STUD COUPLING
316 STAINLESS STEEL

Note: The BSPP Female threads ‘A’ will screw onto BSPP Male with either Captive or Dowty
type seal. The Metric threads ‘B’ are DIN Light (L) or DIN Heavy (S) and come complete with
Tube Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(BSPPF) (Metric L) (mm)

S-GAV6LR 1/8” M12x1.5 6
S-GAV8LR 1/4” M14x1.5 8
S-GAV10LR 1/4” M16x1.5 10
S-GAV12LR 3/8” M18x1.5 12
S-GAV15LR 1/2” M22x1.5 15
S-GAV18LR 1/2” M26x1.5 18
S-GAV22LR 3/4” M30x2.0 22
S-GAV28LR 1” M36x2.0 28
S-GAV35LR 1.1/4” M45x2.0 35
S-GAV42LR 1.1/2” M52x2.0 42

Part No. Thread A Thread B Tube OD
(BSPPF) (Metric S) (mm)

S-GAV6SR 1/4” M14x1.5 6
S-GAV8SR 1/4” M16x1.5 8
S-GAV10SR 3/8” M18x1.5 10
S-GAV12SR 3/8” M20x1.5 12
S-GAV14SR 1/2” M22x1.5 14
S-GAV16SR 1/2” M24x1.5 16
S-GAV20SR 3/4” M30x2.0 20
S-GAV25SR 1” M36x2.0 25
S-GAV30SR 1.1/4” M42x2.0 30
S-GAV38SR 1.1/2” M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
