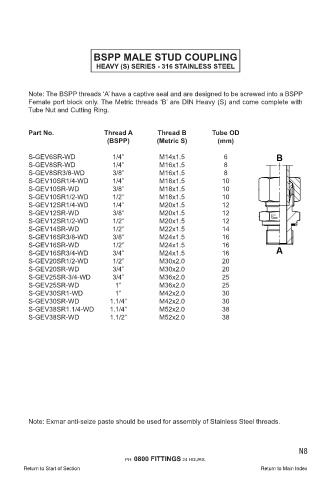

BSPP MALE STUD COUPLING
HEAVY (S) SERIES - 316 STAINLESS STEEL

Note: The BSPP threads ‘A’ have a captive seal and are designed to be screwed into a BSPP
Female port block only. The Metric threads ‘B’ are DIN Heavy (S) and come complete with
Tube Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(BSPP) (Metric S) (mm)

S-GEV6SR-WD 1/4” M14x1.5 6
S-GEV8SR-WD 1/4” M16x1.5 8
S-GEV8SR3/8-WD 3/8” M16x1.5 8
S-GEV10SR1/4-WD 1/4” M18x1.5 10
S-GEV10SR-WD 3/8” M18x1.5 10
S-GEV10SR1/2-WD 1/2” M18x1.5 10
S-GEV12SR1/4-WD 1/4” M20x1.5 12
S-GEV12SR-WD 3/8” M20x1.5 12
S-GEV12SR1/2-WD 1/2” M20x1.5 12
S-GEV14SR-WD 1/2” M22x1.5 14
S-GEV16SR3/8-WD 3/8” M24x1.5 16
S-GEV16SR-WD 1/2” M24x1.5 16
S-GEV16SR3/4-WD 3/4” M24x1.5 16
S-GEV20SR1/2-WD 1/2” M30x2.0 20
S-GEV20SR-WD 3/4” M30x2.0 20
S-GEV25SR-3/4-WD 3/4” M36x2.0 25
S-GEV25SR-WD 1” M36x2.0 25
S-GEV30SR1-WD 1” M42x2.0 30
S-GEV30SR-WD 1.1/4” M42x2.0 30
S-GEV38SR1.1/4-WD 1.1/4” M52x2.0 38
S-GEV38SR-WD 1.1/2” M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
