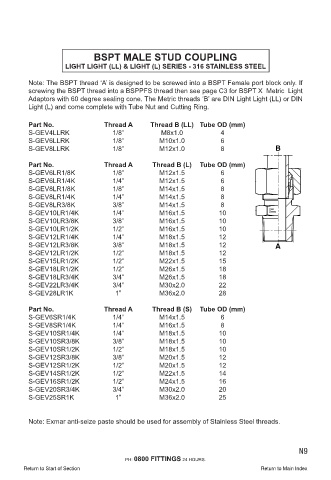

BSPT MALE STUD COUPLING
LIGHT LIGHT (LL) & LIGHT (L) SERIES - 316 STAINLESS STEEL

Note: The BSPT thread ‘A’ is designed to be screwed into a BSPT Female port block only. If
screwing the BSPT thread into a BSPPFS thread then see page C3 for BSPT X Metric Light
Adaptors with 60 degree sealing cone. The Metric threads ‘B’ are DIN Light Light (LL) or DIN
Light (L) and come complete with Tube Nut and Cutting Ring.

Part No. Thread A Thread B (LL) Tube OD (mm)
S-GEV4LLRK 1/8” M8x1.0 4
S-GEV6LLRK 1/8” M10x1.0 6
S-GEV8LLRK 1/8” M12x1.0 8

Part No. Thread A Thread B (L) Tube OD (mm)
S-GEV6LR1/8K 1/8” M12x1.5 6
S-GEV6LR1/4K 1/4” M12x1.5 6
S-GEV8LR1/8K 1/8” M14x1.5 8
S-GEV8LR1/4K 1/4” M14x1.5 8
S-GEV8LR3/8K 3/8” M14x1.5 8
S-GEV10LR1/4K 1/4” M16x1.5 10
S-GEV10LR3/8K 3/8” M16x1.5 10
S-GEV10LR1/2K 1/2” M16x1.5 10
S-GEV12LR1/4K 1/4” M18x1.5 12
S-GEV12LR3/8K 3/8” M18x1.5 12
S-GEV12LR1/2K 1/2” M18x1.5 12
S-GEV15LR1/2K 1/2” M22x1.5 15
S-GEV18LR1/2K 1/2” M26x1.5 18
S-GEV18LR3/4K 3/4” M26x1.5 18
S-GEV22LR3/4K 3/4” M30x2.0 22
S-GEV28LR1K 1” M36x2.0 28

Part No. Thread A Thread B (S) Tube OD (mm)
S-GEV6SR1/4K 1/4” M14x1.5 6
S-GEV8SR1/4K 1/4” M16x1.5 8
S-GEV10SR1/4K 1/4” M18x1.5 10
S-GEV10SR3/8K 3/8” M18x1.5 10
S-GEV10SR1/2K 1/2” M18x1.5 10
S-GEV12SR3/8K 3/8” M20x1.5 12
S-GEV12SR1/2K 1/2” M20x1.5 12
S-GEV14SR1/2K 1/2” M22x1.5 14
S-GEV16SR1/2K 1/2” M24x1.5 16
S-GEV20SR3/4K 3/4” M30x2.0 20
S-GEV25SR1K 1” M36x2.0 25

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
