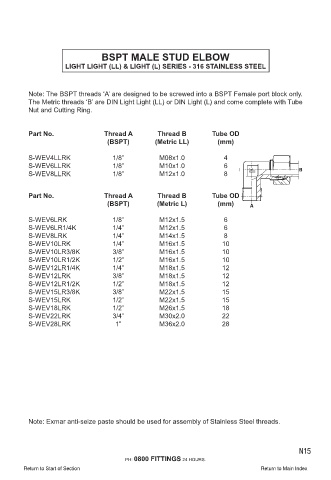

BSPT MALE STUD ELBOW
LIGHT LIGHT (LL) & LIGHT (L) SERIES - 316 STAINLESS STEEL

Note: The BSPT threads ‘A’ are designed to be screwed into a BSPT Female port block only.
The Metric threads ‘B’ are DIN Light Light (LL) or DIN Light (L) and come complete with Tube
Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(BSPT) (Metric LL) (mm)

S-WEV4LLRK 1/8” M08x1.0 4
S-WEV6LLRK 1/8” M10x1.0 6
S-WEV8LLRK 1/8” M12x1.0 8

Part No. Thread A Thread B Tube OD
(BSPT) (Metric L) (mm)

S-WEV6LRK 1/8” M12x1.5 6
S-WEV6LR1/4K 1/4” M12x1.5 6
S-WEV8LRK 1/4” M14x1.5 8
S-WEV10LRK 1/4” M16x1.5 10
S-WEV10LR3/8K 3/8” M16x1.5 10
S-WEV10LR1/2K 1/2” M16x1.5 10
S-WEV12LR1/4K 1/4” M18x1.5 12
S-WEV12LRK 3/8” M18x1.5 12
S-WEV12LR1/2K 1/2” M18x1.5 12
S-WEV15LR3/8K 3/8” M22x1.5 15
S-WEV15LRK 1/2” M22x1.5 15
S-WEV18LRK 1/2” M26x1.5 18
S-WEV22LRK 3/4” M30x2.0 22
S-WEV28LRK 1” M36x2.0 28

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
