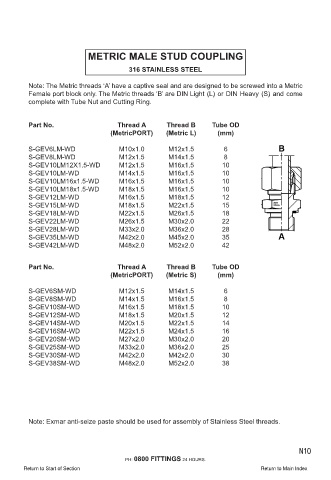

METRIC MALE STUD COUPLING

316 STAINLESS STEEL

Note: The Metric threads ‘A’ have a captive seal and are designed to be screwed into a Metric
Female port block only. The Metric threads ‘B’ are DIN Light (L) or DIN Heavy (S) and come
complete with Tube Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(MetricPORT) (Metric L) (mm)

S-GEV6LM-WD M10x1.0 M12x1.5 6
S-GEV8LM-WD M12x1.5 M14x1.5 8
S-GEV10LM12X1.5-WD M12x1.5 M16x1.5 10
S-GEV10LM-WD M14x1.5 M16x1.5 10
S-GEV10LM16x1.5-WD M16x1.5 M16x1.5 10
S-GEV10LM18x1.5-WD M18x1.5 M16x1.5 10
S-GEV12LM-WD M16x1.5 M18x1.5 12
S-GEV15LM-WD M18x1.5 M22x1.5 15
S-GEV18LM-WD M22x1.5 M26x1.5 18
S-GEV22LM-WD M26x1.5 M30x2.0 22
S-GEV28LM-WD M33x2.0 M36x2.0 28
S-GEV35LM-WD M42x2.0 M45x2.0 35
S-GEV42LM-WD M48x2.0 M52x2.0 42

Part No. Thread A Thread B Tube OD
(MetricPORT) (Metric S) (mm)

S-GEV6SM-WD M12x1.5 M14x1.5 6
S-GEV8SM-WD M14x1.5 M16x1.5 8
S-GEV10SM-WD M16x1.5 M18x1.5 10
S-GEV12SM-WD M18x1.5 M20x1.5 12
S-GEV14SM-WD M20x1.5 M22x1.5 14
S-GEV16SM-WD M22x1.5 M24x1.5 16
S-GEV20SM-WD M27x2.0 M30x2.0 20
S-GEV25SM-WD M33x2.0 M36x2.0 25
S-GEV30SM-WD M42x2.0 M42x2.0 30
S-GEV38SM-WD M48x2.0 M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
