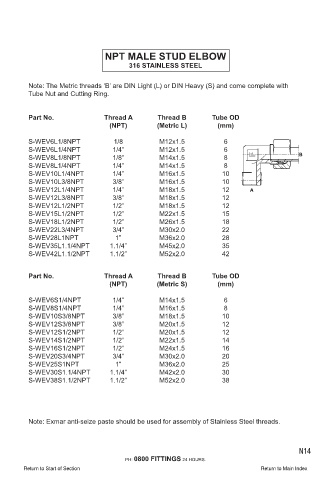

NPT MALE STUD ELBOW
316 STAINLESS STEEL

Note: The Metric threads ‘B’ are DIN Light (L) or DIN Heavy (S) and come complete with
Tube Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(NPT) (Metric L) (mm)

S-WEV6L1/8NPT 1/8 M12x1.5 6
S-WEV6L1/4NPT 1/4” M12x1.5 6
S-WEV8L1/8NPT 1/8” M14x1.5 8
S-WEV8L1/4NPT 1/4” M14x1.5 8
S-WEV10L1/4NPT 1/4” M16x1.5 10
S-WEV10L3/8NPT 3/8” M16x1.5 10
S-WEV12L1/4NPT 1/4” M18x1.5 12
S-WEV12L3/8NPT 3/8” M18x1.5 12
S-WEV12L1/2NPT 1/2” M18x1.5 12
S-WEV15L1/2NPT 1/2” M22x1.5 15
S-WEV18L1/2NPT 1/2” M26x1.5 18
S-WEV22L3/4NPT 3/4” M30x2.0 22
S-WEV28L1NPT 1” M36x2.0 28
S-WEV35L1.1/4NPT 1.1/4” M45x2.0 35
S-WEV42L1.1/2NPT 1.1/2” M52x2.0 42

Part No. Thread A Thread B Tube OD
(NPT) (Metric S) (mm)

S-WEV6S1/4NPT 1/4” M14x1.5 6
S-WEV8S1/4NPT 1/4” M16x1.5 8
S-WEV10S3/8NPT 3/8” M18x1.5 10
S-WEV12S3/8NPT 3/8” M20x1.5 12
S-WEV12S1/2NPT 1/2” M20x1.5 12
S-WEV14S1/2NPT 1/2” M22x1.5 14
S-WEV16S1/2NPT 1/2” M24x1.5 16
S-WEV20S3/4NPT 3/4” M30x2.0 20
S-WEV25S1NPT 1” M36x2.0 25
S-WEV30S1.1/4NPT 1.1/4” M42x2.0 30
S-WEV38S1.1/2NPT 1.1/2” M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
