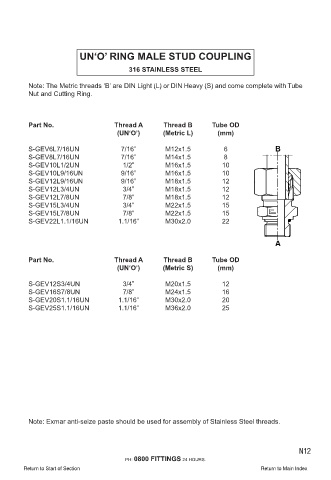

UN‘O’ RING MALE STUD COUPLING

316 STAINLESS STEEL

Note: The Metric threads ‘B’ are DIN Light (L) or DIN Heavy (S) and come complete with Tube
Nut and Cutting Ring.

Part No. Thread A Thread B Tube OD
(UN‘O’) (Metric L) (mm)

S-GEV6L7/16UN 7/16” M12x1.5 6
S-GEV8L7/16UN 7/16” M14x1.5 8
S-GEV10L1/2UN 1/2” M16x1.5 10
S-GEV10L9/16UN 9/16” M16x1.5 10
S-GEV12L9/16UN 9/16” M18x1.5 12
S-GEV12L3/4UN 3/4” M18x1.5 12
S-GEV12L7/8UN 7/8” M18x1.5 12
S-GEV15L3/4UN 3/4” M22x1.5 15
S-GEV15L7/8UN 7/8” M22x1.5 15
S-GEV22L1.1/16UN 1.1/16” M30x2.0 22

Part No. Thread A Thread B Tube OD
(UN‘O’) (Metric S) (mm)

S-GEV12S3/4UN 3/4” M20x1.5 12
S-GEV16S7/8UN 7/8” M24x1.5 16
S-GEV20S1.1/16UN 1.1/16” M30x2.0 20
S-GEV25S1.1/16UN 1.1/16” M36x2.0 25

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
