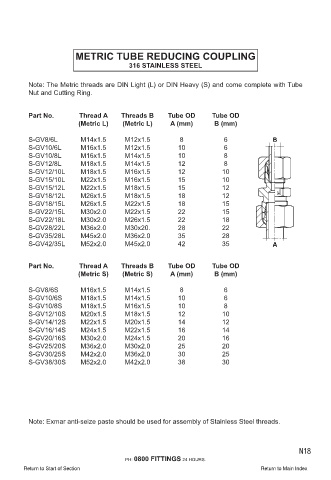

METRIC TUBE REDUCING COUPLING
316 STAINLESS STEEL

Note: The Metric threads are DIN Light (L) or DIN Heavy (S) and come complete with Tube
Nut and Cutting Ring.

Part No. Thread A Threads B Tube OD Tube OD
(Metric L) (Metric L) A (mm) B (mm)

S-GV8/6L M14x1.5 M12x1.5 8 6
S-GV10/6L M16x1.5 M12x1.5 10 6
S-GV10/8L M16x1.5 M14x1.5 10 8
S-GV12/8L M18x1.5 M14x1.5 12 8
S-GV12/10L M18x1.5 M16x1.5 12 10
S-GV15/10L M22x1.5 M16x1.5 15 10
S-GV15/12L M22x1.5 M18x1.5 15 12
S-GV18/12L M26x1.5 M18x1.5 18 12
S-GV18/15L M26x1.5 M22x1.5 18 15
S-GV22/15L M30x2.0 M22x1.5 22 15
S-GV22/18L M30x2.0 M26x1.5 22 18
S-GV28/22L M36x2.0 M30x20. 28 22
S-GV35/28L M45x2.0 M36x2.0 35 28
S-GV42/35L M52x2.0 M45x2.0 42 35

Part No. Thread A Threads B Tube OD Tube OD
(Metric S) (Metric S) A (mm) B (mm)

S-GV8/6S M16x1.5 M14x1.5 8 6
S-GV10/6S M18x1.5 M14x1.5 10 6
S-GV10/8S M18x1.5 M16x1.5 10 8
S-GV12/10S M20x1.5 M18x1.5 12 10
S-GV14/12S M22x1.5 M20x1.5 14 12
S-GV16/14S M24x1.5 M22x1.5 16 14
S-GV20/16S M30x2.0 M24x1.5 20 16
S-GV25/20S M36x2.0 M30x2.0 25 20
S-GV30/25S M42x2.0 M36x2.0 30 25
S-GV38/30S M52x2.0 M42x2.0 38 30

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
