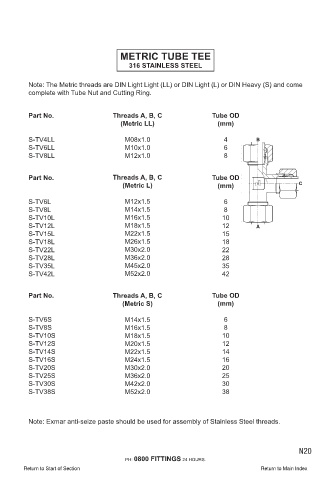

METRIC TUBE TEE
316 STAINLESS STEEL

Note: The Metric threads are DIN Light Light (LL) or DIN Light (L) or DIN Heavy (S) and come
complete with Tube Nut and Cutting Ring.

Part No. Threads A, B, C Tube OD
(Metric LL) (mm)

S-TV4LL M08x1.0 4
S-TV6LL M10x1.0 6
S-TV8LL M12x1.0 8

Part No. Threads A, B, C Tube OD
(Metric L) (mm)

S-TV6L M12x1.5 6
S-TV8L M14x1.5 8
S-TV10L M16x1.5 10
S-TV12L M18x1.5 12
S-TV15L M22x1.5 15
S-TV18L M26x1.5 18
S-TV22L M30x2.0 22
S-TV28L M36x2.0 28
S-TV35L M45x2.0 35
S-TV42L M52x2.0 42

Part No. Threads A, B, C Tube OD
(Metric S) (mm)

S-TV6S M14x1.5 6
S-TV8S M16x1.5 8
S-TV10S M18x1.5 10
S-TV12S M20x1.5 12
S-TV14S M22x1.5 14
S-TV16S M24x1.5 16
S-TV20S M30x2.0 20
S-TV25S M36x2.0 25
S-TV30S M42x2.0 30
S-TV38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
