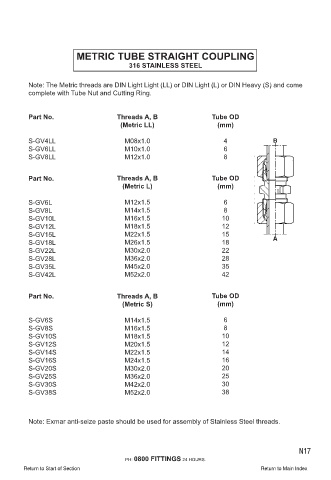

METRIC TUBE STRAIGHT COUPLING
316 STAINLESS STEEL

Note: The Metric threads are DIN Light Light (LL) or DIN Light (L) or DIN Heavy (S) and come
complete with Tube Nut and Cutting Ring.

Part No. Threads A, B Tube OD
(Metric LL) (mm)

S-GV4LL M08x1.0 4
S-GV6LL M10x1.0 6
S-GV8LL M12x1.0 8

Part No. Threads A, B Tube OD
(Metric L) (mm)

S-GV6L M12x1.5 6
S-GV8L M14x1.5 8
S-GV10L M16x1.5 10
S-GV12L M18x1.5 12
S-GV15L M22x1.5 15
S-GV18L M26x1.5 18
S-GV22L M30x2.0 22
S-GV28L M36x2.0 28
S-GV35L M45x2.0 35
S-GV42L M52x2.0 42

Part No. Threads A, B Tube OD
(Metric S) (mm)

S-GV6S M14x1.5 6
S-GV8S M16x1.5 8
S-GV10S M18x1.5 10
S-GV12S M20x1.5 12
S-GV14S M22x1.5 14
S-GV16S M24x1.5 16
S-GV20S M30x2.0 20
S-GV25S M36x2.0 25
S-GV30S M42x2.0 30
S-GV38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
