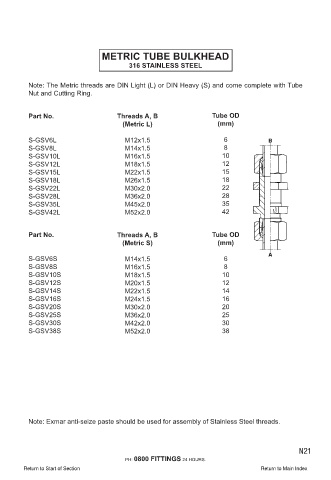

METRIC TUBE BULKHEAD
316 STAINLESS STEEL

Note: The Metric threads are DIN Light (L) or DIN Heavy (S) and come complete with Tube
Nut and Cutting Ring.

Part No. Threads A, B Tube OD
(Metric L) (mm)

S-GSV6L M12x1.5 6
S-GSV8L M14x1.5 8
S-GSV10L M16x1.5 10
S-GSV12L M18x1.5 12
S-GSV15L M22x1.5 15
S-GSV18L M26x1.5 18
S-GSV22L M30x2.0 22
S-GSV28L M36x2.0 28
S-GSV35L M45x2.0 35
S-GSV42L M52x2.0 42

Part No. Threads A, B Tube OD
(Metric S) (mm)

S-GSV6S M14x1.5 6
S-GSV8S M16x1.5 8
S-GSV10S M18x1.5 10
S-GSV12S M20x1.5 12
S-GSV14S M22x1.5 14
S-GSV16S M24x1.5 16
S-GSV20S M30x2.0 20
S-GSV25S M36x2.0 25
S-GSV30S M42x2.0 30
S-GSV38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
