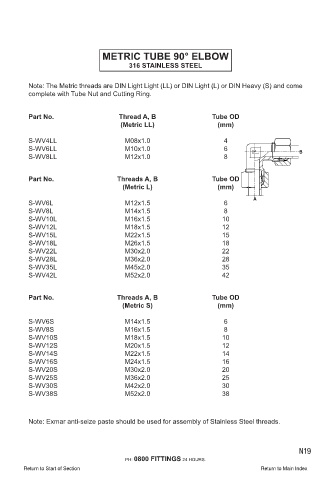

METRIC TUBE 90° ELBOW
316 STAINLESS STEEL

Note: The Metric threads are DIN Light Light (LL) or DIN Light (L) or DIN Heavy (S) and come
complete with Tube Nut and Cutting Ring.

Part No. Thread A, B Tube OD
(Metric LL) (mm)

S-WV4LL M08x1.0 4
S-WV6LL M10x1.0 6
S-WV8LL M12x1.0 8

Part No. Threads A, B Tube OD
(Metric L) (mm)

S-WV6L M12x1.5 6
S-WV8L M14x1.5 8
S-WV10L M16x1.5 10
S-WV12L M18x1.5 12
S-WV15L M22x1.5 15
S-WV18L M26x1.5 18
S-WV22L M30x2.0 22
S-WV28L M36x2.0 28
S-WV35L M45x2.0 35
S-WV42L M52x2.0 42

Part No. Threads A, B Tube OD
(Metric S) (mm)

S-WV6S M14x1.5 6
S-WV8S M16x1.5 8
S-WV10S M18x1.5 10
S-WV12S M20x1.5 12
S-WV14S M22x1.5 14
S-WV16S M24x1.5 16
S-WV20S M30x2.0 20
S-WV25S M36x2.0 25
S-WV30S M42x2.0 30
S-WV38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
