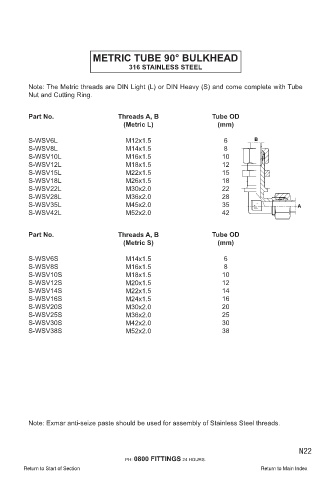

METRIC TUBE 90° BULKHEAD
316 STAINLESS STEEL

Note: The Metric threads are DIN Light (L) or DIN Heavy (S) and come complete with Tube
Nut and Cutting Ring.

Part No. Threads A, B Tube OD
(Metric L) (mm)

S-WSV6L M12x1.5 6
S-WSV8L M14x1.5 8
S-WSV10L M16x1.5 10
S-WSV12L M18x1.5 12
S-WSV15L M22x1.5 15
S-WSV18L M26x1.5 18
S-WSV22L M30x2.0 22
S-WSV28L M36x2.0 28
S-WSV35L M45x2.0 35
S-WSV42L M52x2.0 42

Part No. Threads A, B Tube OD
(Metric S) (mm)

S-WSV6S M14x1.5 6
S-WSV8S M16x1.5 8
S-WSV10S M18x1.5 10
S-WSV12S M20x1.5 12
S-WSV14S M22x1.5 14
S-WSV16S M24x1.5 16
S-WSV20S M30x2.0 20
S-WSV25S M36x2.0 25
S-WSV30S M42x2.0 30
S-WSV38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
