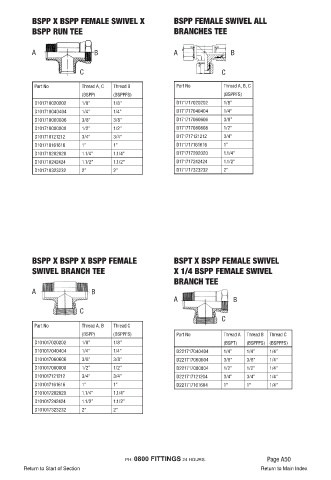

Page 54 - Fluid Fitting 2018_extended

BSPP X BSPP FEMALE SWIVEL X BSPP FEMALE SWIVEL ALL
BSPP RUN TEE BRANCHES TEE

A B A B

C C

Part No Thread A, C Thread B Part No Thread A, B, C
(BSPP) (BSPPFS) (BSPPFS)
D101710020202 1/8” 1/8” D171717020202 1/8”
D101710040404 1/4” 1/4” D171717040404 1/4”
D101710060606 3/8” 3/8” D171717060606 3/8”
D101710080808 1/2” 1/2” D171717080808 1/2”
D101710121212 3/4” 3/4” D171717121212 3/4”
D101710161616 1” 1” D171717161616 1”
D101710202020 1.1/4” 1.1/4” D171717202020 1.1/4”
D101710242424 1.1/2” 1.1/2” D171717242424 1.1/2”
D101710323232 2” 2” D171717323232 2”

BSPP X BSPP X BSPP FEMALE BSPT X BSPP FEMALE SWIVEL
SWIVEL BRANCH TEE X 1/4 BSPP FEMALE SWIVEL
BRANCH TEE

A B
A B
C
C
Part No Thread A, B Thread C
(BSPP) (BSPPFS) Part No Thread A Thread B Thread C
D101017020202 1/8” 1/8” (BSPT) (BSPPFS) (BSPPFS)
D101017040404 1/4” 1/4” D221717040404 1/4” 1/4” 1/4”
D101017060606 3/8” 3/8” D221717060604 3/8” 3/8” 1/4”
D101017080808 1/2” 1/2” D221717080804 1/2” 1/2” 1/4”
D101017121212 3/4” 3/4” D221717121204 3/4” 3/4” 1/4”
D101017161616 1” 1” D221717161604 1” 1” 1/4”
D101017202020 1.1/4” 1.1/4”
D101017242424 1.1/2” 1.1/2”
D101017323232 2” 2”
