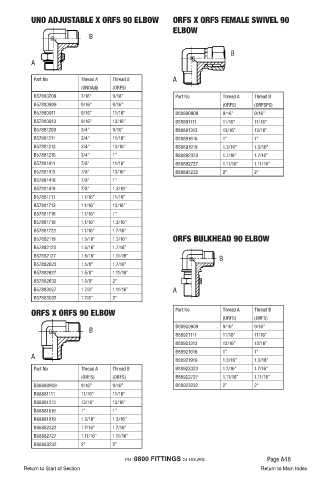

Page 52 - Fluid Fitting 2018_extended

UNO ADJUSTABLE X ORFS 90 ELBOW ORFS X ORFS FEMALE SWIVEL 90
ELBOW
B

B

A

Part No Thread A Thread B A
(UNOAdj) (ORFS)
B57880709 7/16” 9/16” Part No Thread A Thread B
B57880909 9/16” 9/16” (ORFS) (ORFSFS)
B57880911 9/16” 11/16” B88890909 9/16” 9/16”
B57880913 9/16” 13/16” B88891111 11/16” 11/16”
B57881209 3/4” 9/16” B88891313 13/16” 13/16”
B57881211 3/4” 11/16” B88891616 1” 1”
B57881213 3/4” 13/16” B88891919 1.3/16” 1.3/16”
B57881216 3/4” 1” B88892323 1.7/16” 1.7/16”
B57881411 7/8” 11/16” B88892727 1.11/16” 1.11/16”
B57881413 7/8” 13/16” B88893232 2” 2”
B57881416 7/8” 1”
B57881419 7/8” 1.3/16”
B57881711 1.1/16” 11/16”
B57881713 1.1/16” 13/16”
B57881716 1.1/16” 1”
B57881719 1.1/16” 1.3/16”
B57881723 1.1/16” 1.7/16”
B57882119 1.5/16” 1.3/16” ORFS BULKHEAD 90 ELBOW
B57882123 1.5/16” 1.7/16”
B57882127 1.5/16” 1.11/16” B
B57882623 1.5/8” 1.7/16”
B57882627 1.5/8” 1.11/16”
B57882632 1.5/8” 2”
B57883027 1.7/8” 1.11/16” A
B57883032 1.7/8” 2”

ORFS X ORFS 90 ELBOW Part No Thread A Thread B
(ORFS) (ORFS)
B88920909 9/16” 9/16”
B
B88921111 11/16” 11/16”
B88921313 13/16” 13/16”
B88921616 1” 1”
A
B88921919 1.3/16” 1.3/16”
Part No Thread A Thread B B88922323 1.7/16” 1.7/16”
(ORFS) (ORFS) B88922727 1.11/16” 1.11/16”
B88880909 9/16” 9/16” B88923232 2” 2”
B88881111 11/16” 11/16”
B88881313 13/16” 13/16”
B88881616 1” 1”
B88881919 1.3/16” 1.3/16”
B88882323 1.7/16” 1.7/16”
B88882727 1.11/16” 1.11/16”
B88883232 2” 2”

PH: 0800 FITTINGS 24 HOURS. Page A48
