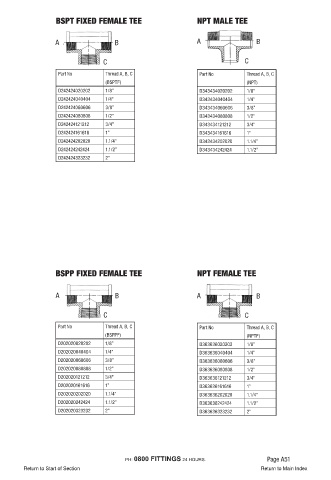

Page 55 - Fluid Fitting 2018_extended

BSPT FIXED FEMALE TEE NPT MALE TEE

A B A B

C C

Part No Thread A, B, C Part No Thread A, B, C
(BSPTF) (NPT)
D242424020202 1/8” D343434020202 1/8”
D242424040404 1/4” D343434040404 1/4”
D242424060606 3/8” D343434060606 3/8”
D242424080808 1/2” D343434080808 1/2”
D242424121212 3/4” D343434121212 3/4”
D242424161616 1” D343434161616 1”
D242424202020 1.1/4” D343434202020 1.1/4”
D242424242424 1.1/2” D343434242424 1.1/2”
D242424323232 2”

BSPP FIXED FEMALE TEE NPT FEMALE TEE

A B A B

C C

Part No Thread A, B, C Part No Thread A, B, C
(BSPPF) (NPTF)
D202020020202 1/8” D363636020202 1/8”
D202020040404 1/4” D363636040404 1/4”
D202020060606 3/8” D363636060606 3/8”
D202020080808 1/2” D363636080808 1/2”
D202020121212 3/4” D363636121212 3/4”
D202020161616 1” D363636161616 1”
D202020202020 1.1/4” D363636202020 1.1/4”
D202020242424 1.1/2” D363636242424 1.1/2”
D202020323232 2” D363636323232 2”

PH: 0800 FITTINGS 24 HOURS. Page A51
