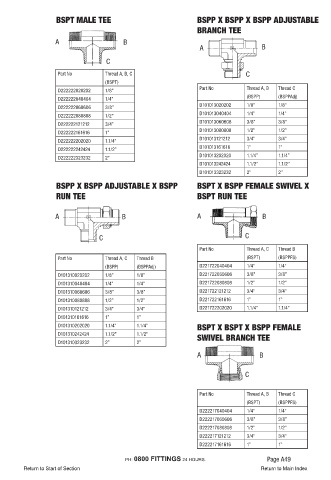

Page 53 - Fluid Fitting 2018_extended

BSPT MALE TEE BSPP X BSPP X BSPP ADJUSTABLE
BRANCH TEE

A B
A B

C

Part No Thread A, B, C C
(BSPT)
D222222020202 1/8” Part No Thread A, B Thread C
D222222040404 1/4” (BSPP) (BSPPAdj)
D222222060606 3/8” D101013020202 1/8” 1/8”
D222222080808 1/2” D101013040404 1/4” 1/4”
D222222121212 3/4” D101013060606 3/8” 3/8”
D222222161616 1” D101013080808 1/2” 1/2”
D222222202020 1.1/4” D101013121212 3/4” 3/4”
D222222242424 1.1/2” D101013161616 1” 1”
D222222323232 2” D101013202020 1.1/4” 1.1/4”
D101013242424 1.1/2” 1.1/2”
D101013323232 2” 2”

BSPP X BSPP ADJUSTABLE X BSPP BSPT X BSPP FEMALE SWIVEL X
RUN TEE BSPT RUN TEE

A B A B

C C

Part No Thread A, C Thread B
Part No Thread A, C Thread B (BSPT) (BSPPFS)
(BSPP) (BSPPAdj) D221722040404 1/4” 1/4”
D101310020202 1/8” 1/8” D221722060606 3/8” 3/8”
D101310040404 1/4” 1/4” D221722080808 1/2” 1/2”
D101310060606 3/8” 3/8” D221722121212 3/4” 3/4”
D101310080808 1/2” 1/2” D221722161616 1” 1”
D101310121212 3/4” 3/4” D221722202020 1.1/4” 1.1/4”
D101310161616 1” 1”
D101310202020 1.1/4” 1.1/4” BSPT X BSPT X BSPP FEMALE
D101310242424 1.1/2” 1.1/2” SWIVEL BRANCH TEE
D101310323232 2” 2”
A B

C

Part No Thread A, B Thread C
(BSPT) (BSPPFS)
D222217040404 1/4” 1/4”
D222217060606 3/8” 3/8”
D222217080808 1/2” 1/2”
D222217121212 3/4” 3/4”
D222217161616 1” 1”

PH: 0800 FITTINGS 24 HOURS. Page A49
Return to Start of Section Return to Main Index
