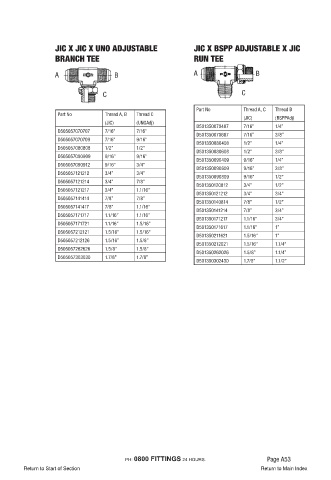

JIC X JIC X UNO ADJUSTABLE JIC X BSPP ADJUSTABLE X JIC
BRANCH TEE RUN TEE

A B A B

C C

Part No Thread A, C Thread B
Part No Thread A, B Thread C
(JIC) (BSPPAdj)
(JIC) (UNOAdj)
D501350070407 7/16” 1/4”
D505057070707 7/16” 7/16”
D501350070607 7/16” 3/8”
D505057070709 7/16” 9/16”
D501350080408 1/2” 1/4”
D505057080808 1/2” 1/2”
D501350080608 1/2” 3/8”
D505057090909 9/16” 9/16”
D501350090409 9/16” 1/4”
D505057090912 9/16” 3/4”
D501350090609 9/16” 3/8”
D505057121212 3/4” 3/4”
D501350090809 9/16” 1/2”
D505057121214 3/4” 7/8”
D501350120812 3/4” 1/2”
D505057121217 3/4” 1.1/16”
D501350121212 3/4” 3/4”
D505057141414 7/8” 7/8”
D501350140814 7/8” 1/2”
D505057141417 7/8” 1.1/16”
D501350141214 7/8” 3/4”
D505057171717 1.1/16” 1.1/16”
D501350171217 1.1/16” 3/4”
D505057171721 1.1/16” 1.5/16”
D501350171617 1.1/16” 1”
D505057212121 1.5/16” 1.5/16”
D501350211621 1.5/16” 1”
D505057212126 1.5/16” 1.5/8”
D501350212021 1.5/16” 1.1/4”
D505057262626 1.5/8” 1.5/8”
D501350262026 1.5/8” 1.1/4”
D505057303030 1.7/8” 1.7/8”
D501350302430 1.7/8” 1.1/2”
