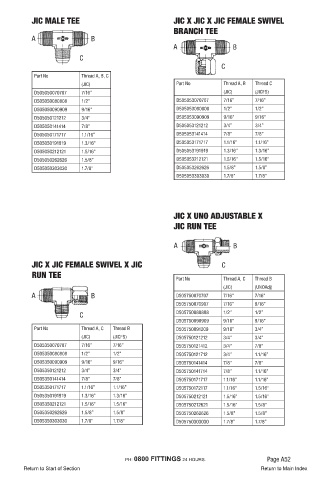

Page 56 - Fluid Fitting 2018_extended

JIC MALE TEE JIC X JIC X JIC FEMALE SWIVEL
BRANCH TEE
A B
A B
C
C

Part No Thread A, B, C
(JIC) Part No Thread A, B Thread C
D505050070707 7/16” (JIC) (JICFS)
D505050080808 1/2” D505053070707 7/16” 7/16”
D505050090909 9/16” D505053080808 1/2” 1/2”
D505050121212 3/4” D505053090909 9/16” 9/16”
D505050141414 7/8” D505053121212 3/4” 3/4”
D505050171717 1.1/16” D505053141414 7/8” 7/8”
D505050191919 1.3/16” D505053171717 1.1/16” 1.1/16”
D505050212121 1.5/16” D505053191919 1.3/16” 1.3/16”
D505050262626 1.5/8” D505053212121 1.5/16” 1.5/16”
D505050303030 1.7/8” D505053262626 1.5/8” 1.5/8”
D505053303030 1.7/8” 1.7/8”

JIC X UNO ADJUSTABLE X
JIC RUN TEE

A B

JIC X JIC FEMALE SWIVEL X JIC C
RUN TEE Part No Thread A, C Thread B

(JIC) (UNOAdj)
A B D505750070707 7/16” 7/16”
D505750070907 7/16” 9/16”
C D505750080808 1/2” 1/2”
D505750090909 9/16” 9/16”
Part No Thread A, C Thread B D505750091209 9/16” 3/4”
(JIC) (JICFS) D505750121212 3/4” 3/4”
D505350070707 7/16” 7/16” D505750121412 3/4” 7/8”
D505350080808 1/2” 1/2” D505750121712 3/4” 1.1/16”
D505350090909 9/16” 9/16” D505750141414 7/8” 7/8”
D505350121212 3/4” 3/4” D505750141714 7/8” 1.1/16”
D505350141414 7/8” 7/8” D505750171717 1.1/16” 1.1/16”
D505350171717 1.1/16” 1.1/16” D505750172117 1.1/16” 1.5/16”
D505350191919 1.3/16” 1.3/16” D505750212121 1.5/16” 1.5/16”
D505350212121 1.5/16” 1.5/16” D505750212621 1.5/16” 1.5/8”
D505350262626 1.5/8” 1.5/8” D505750262626 1.5/8” 1.5/8”
D505350303030 1.7/8” 1.7/8” D505750303030 1.7/8” 1.7/8”
