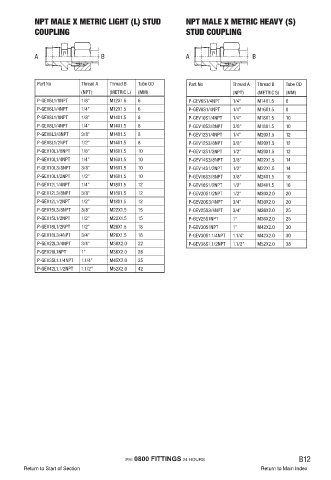

NPT MALE X METRIC LIGHT (L) STUD NPT MALE X METRIC HEAVY (S)
COUPLING STUD COUPLING

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(NPT) (METRIC L) (MM) (NPT) (METRIC S) (MM)
P-GEV6L1/8NPT 1/8” M12X1.5 6 P-GEV6S1/4NPT 1/4” M14X1.5 6
P-GEV6L1/4NPT 1/4” M12X1.5 6 P-GEV8S1/4NPT 1/4” M16X1.5 8
P-GEV8L1/8NPT 1/8” M14X1.5 8 P-GEV10S1/4NPT 1/4” M18X1.5 10
P-GEV8L1/4NPT 1/4” M14X1.5 8 P-GEV10S3/8NPT 3/8” M18X1.5 10
P-GEV8L3/8NPT 3/8” M14X1.5 8 P-GEV12S1/4NPT 1/4” M20X1.5 12
P-GEV8L1/2NPT 1/2” M14X1.5 8 P-GEV12S3/8NPT 3/8” M20X1.5 12
P-GEV10L1/8NPT 1/8” M16X1.5 10 P-GEV12S1/2NPT 1/2” M20X1.5 12
P-GEV10L1/4NPT 1/4” M16X1.5 10 P-GEV14S3/8NPT 3/8” M22X1.5 14
P-GEV10L3/8NPT 3/8” M16X1.5 10 P-GEV14S1/2NPT 1/2” M22X1.5 14
P-GEV10L1/2NPT 1/2” M16X1.5 10 P-GEV16S3/8NPT 3/8” M24X1.5 16
P-GEV12L1/4NPT 1/4” M18X1.5 12 P-GEV16S1/2NPT 1/2” M24X1.5 16
P-GEV12L3/8NPT 3/8” M18X1.5 12 P-GEV20S1/2NPT 1/2” M30X2.0 20
P-GEV12L1/2NPT 1/2” M18X1.5 12 P-GEV20S3/4NPT 3/4” M30X2.0 20
P-GEV15L3/8NPT 3/8” M22X1.5 15 P-GEV25S3/4NPT 3/4” M36X2.0 25
P-GEV15L1/2NPT 1/2” M22X1.5 15 P-GEV25S1NPT 1” M36X2.0 25
P-GEV18L1/2NPT 1/2” M26X1.5 18 P-GEV30S1NPT 1” M42X2.0 30
P-GEV18L3/4NPT 3/4” M26X1.5 18 P-GEV30S1.1/4NPT 1.1/4” M42X2.0 30
P-GEV22L3/4NPT 3/4” M30X2.0 22 P-GEV38S1.1/2NPT 1.1/2” M52X2.0 38
P-GEV28L1NPT 1” M36X2.0 28
P-GEV35L1.1/4NPT 1.1/4” M45X2.0 35
P-GEV42L1.1/2NPT 1.1/2” M52X2.0 42
