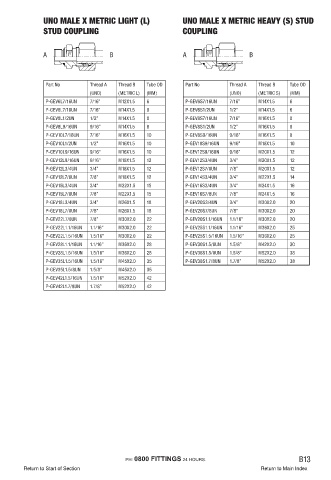

Page 79 - Fluid Fitting 2018_extended

UNO MALE X METRIC LIGHT (L) UNO MALE X METRIC HEAVY (S) STUD
STUD COUPLING COUPLING

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(UNO) (METRIC L) (MM) (UNO) (METRIC S) (MM)
P-GEV6L7/16UN 7/16” M12X1.5 6 P-GEV6S7/16UN 7/16” M14X1.5 6
P-GEV8L7/16UN 7/16” M14X1.5 8 P-GEV6S1/2UN 1/2” M14X1.5 6
P-GEV8L1/2UN 1/2” M14X1.5 8 P-GEV8S7/16UN 7/16” M16X1.5 8
P-GEV8L9/16UN 9/16” M14X1.5 8 P-GEV8S1/2UN 1/2” M16X1.5 8
P-GEV10L7/16UN 7/16” M16X1.5 10 P-GEV8S9/16UN 9/16” M16X1.5 8
P-GEV10L1/2UN 1/2” M16X1.5 10 P-GEV10S9/16UN 9/16” M18X1.5 10
P-GEV10L9/16UN 9/16” M16X1.5 10 P-GEV12S9/16UN 9/16” M20X1.5 12
P-GEV12L9/16UN 9/16” M18X1.5 12 P-GEV12S3/4UN 3/4” M20X1.5 12
P-GEV12L3/4UN 3/4” M18X1.5 12 P-GEV12S7/8UN 7/8” M20X1.5 12
P-GEV12L7/8UN 7/8” M18X1.5 12 P-GEV14S3/4UN 3/4” M22X1.5 14
P-GEV15L3/4UN 3/4” M22X1.5 15 P-GEV16S3/4UN 3/4” M24X1.5 16
P-GEV15L7/8UN 7/8” M22X1.5 15 P-GEV16S7/8UN 7/8” M24X1.5 16
P-GEV18L3/4UN 3/4” M26X1.5 18 P-GEV20S3/4UN 3/4” M30X2.0 20
P-GEV18L7/8UN 7/8” M26X1.5 18 P-GEV20S7/8UN 7/8” M30X2.0 20
P-GEV22L7/8UN 7/8” M30X2.0 22 P-GEV20S1.1/16UN 1.1/16” M30X2.0 20
P-GEV22L1.1/16UN 1.1/16” M30X2.0 22 P-GEV25S1.1/16UN 1.1/16” M36X2.0 25
P-GEV22L1.5/16UN 1.5/16” M30X2.0 22 P-GEV25S1.5/16UN 1.5/16” M36X2.0 25
P-GEV28L1.1/16UN 1.1/16” M36X2.0 28 P-GEV30S1.5/8UN 1.5/8” M42X2.0 30
P-GEV28L1.5/16UN 1.5/16” M36X2.0 28 P-GEV38S1.5/8UN 1.5/8” M52X2.0 38
P-GEV35L1.5/16UN 1.5/16” M45X2.0 35 P-GEV38S1.7/8UN 1.7/8” M52X2.0 38
P-GEV35L1.5/8UN 1.5/8” M45X2.0 35
P-GEV42L1.5/16UN 1.5/16” M52X2.0 42
P-GEV42L1.7/8UN 1.7/8” M52X2.0 42

PH: 0800 FITTINGS 24 HOURS. B13
