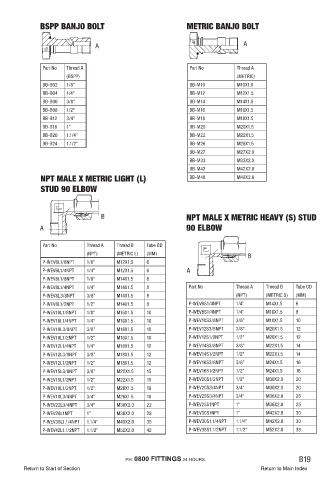

Page 85 - Fluid Fitting 2018_extended

BSPP BANJO BOLT METRIC BANJO BOLT

A A

Part No Thread A Part No Thread A
(BSPP) (METRIC)
BB-B02 1/8” BB-M10 M10X1.0
BB-B04 1/4” BB-M12 M12X1.5
BB-B06 3/8” BB-M14 M14X1.5
BB-B08 1/2” BB-M16 M16X1.5
BB-B12 3/4” BB-M18 M18X1.5
BB-B16 1” BB-M20 M20X1.5
BB-B20 1.1/4” BB-M22 M22X1.5
BB-B24 1.1/2” BB-M26 M26X1.5
BB-M27 M27X2.0
BB-M33 M33X2.0
BB-M42 M42X2.0
NPT MALE X METRIC LIGHT (L) BB-M48 M48X2.0

STUD 90 ELBOW

B NPT MALE X METRIC HEAVY (S) STUD

A 90 ELBOW

Part No Thread A Thread B Tube OD
(NPT) (METRIC L) (MM) B
P-WEV6L1/8NPT 1/8” M12X1.5 6
P-WEV6L1/4NPT 1/4” M12X1.5 6 A
P-WEV8L1/8NPT 1/8” M14X1.5 8
P-WEV8L1/4NPT 1/4” M14X1.5 8 Part No Thread A Thread B Tube OD
P-WEV8L3/8NPT 3/8” M14X1.5 8 (NPT) (METRIC S) (MM)
P-WEV8L1/2NPT 1/2” M14X1.5 8 P-WEV6S1/4NPT 1/4” M14X1.5 6
P-WEV10L1/8NPT 1/8” M16X1.5 10 P-WEV8S1/4NPT 1/4” M16X1.5 8
P-WEV10L1/4NPT 1/4” M16X1.5 10 P-WEV10S3/8NPT 3/8” M18X1.5 10
P-WEV10L3/8NPT 3/8” M16X1.5 10 P-WEV12S3/8NPT 3/8” M20X1.5 12
P-WEV10L1/2NPT 1/2” M16X1.5 10 P-WEV12S1/2NPT 1/2” M20X1.5 12
P-WEV12L1/4NPT 1/4” M18X1.5 12 P-WEV14S3/8NPT 3/8” M22X1.5 14
P-WEV12L3/8NPT 3/8” M18X1.5 12 P-WEV14S1/2NPT 1/2” M22X1.5 14
P-WEV12L1/2NPT 1/2” M18X1.5 12 P-WEV16S3/8NPT 3/8” M24X1.5 16
P-WEV15L3/8NPT 3/8” M22X1.5 15 P-WEV16S1/2NPT 1/2” M24X1.5 16
P-WEV15L1/2NPT 1/2” M22X1.5 15 P-WEV20S1/2NPT 1/2” M30X2.0 20
P-WEV18L1/2NPT 1/2” M26X1.5 18 P-WEV20S3/4NPT 3/4” M30X2.0 20
P-WEV18L3/4NPT 3/4” M26X1.5 18 P-WEV25S3/4NPT 3/4” M36X2.0 25
P-WEV22L3/4NPT 3/4” M30X2.0 22 P-WEV25S1NPT 1” M36X2.0 25
P-WEV28L1NPT 1” M36X2.0 28 P-WEV30S1NPT 1” M42X2.0 30
P-WEV35L1.1/4NPT 1.1/4” M45X2.0 35 P-WEV30S1.1/4NPT 1.1/4” M42X2.0 30
P-WEV42L1.1/2NPT 1.1/2” M52X2.0 42 P-WEV38S1.1/2NPT 1.1/2” M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B19
