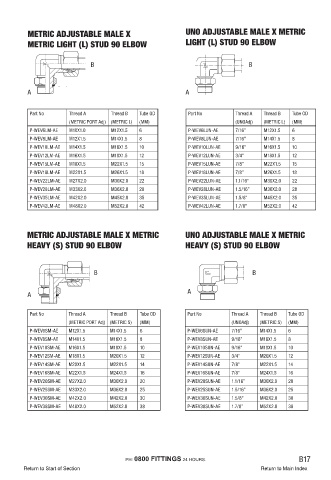

Page 83 - Fluid Fitting 2018_extended

METRIC ADJUSTABLE MALE X UNO ADJUSTABLE MALE X METRIC
METRIC LIGHT (L) STUD 90 ELBOW LIGHT (L) STUD 90 ELBOW

B B

A A

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(METRIC PORT Adj) (METRIC L) (MM) (UNOAdj) (METRIC L) (MM)
P-WEV6LM-AE M10X1.0 M12X1.5 6 P-WEV6LUN-AE 7/16” M12X1.5 6
P-WEV8LM-AE M12X1.5 M14X1.5 8 P-WEV8LUN-AE 7/16” M14X1.5 8
P-WEV10LM-AE M14X1.5 M16X1.5 10 P-WEV10LUN-AE 9/16” M16X1.5 10
P-WEV12LM-AE M16X1.5 M18X1.5 12 P-WEV12LUN-AE 3/4” M18X1.5 12
P-WEV15LM-AE M18X1.5 M22X1.5 15 P-WEV15LUN-AE 7/8” M22X1.5 15
P-WEV18LM-AE M22X1.5 M26X1.5 18 P-WEV18LUN-AE 7/8” M26X1.5 18
P-WEV22LM-AE M27X2.0 M30X2.0 22 P-WEV22LUN-AE 1.1/16” M30X2.0 22
P-WEV28LM-AE M33X2.0 M36X2.0 28 P-WEV28LUN-AE 1.5/16” M36X2.0 28
P-WEV35LM-AE M42X2.0 M45X2.0 35 P-WEV35LUN-AE 1.5/8” M45X2.0 35
P-WEV42LM-AE M48X2.0 M52X2.0 42 P-WEV42LUN-AE 1.7/8” M52X2.0 42

METRIC ADJUSTABLE MALE X METRIC UNO ADJUSTABLE MALE X METRIC
HEAVY (S) STUD 90 ELBOW HEAVY (S) STUD 90 ELBOW

B B

A A

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(METRIC PORT Adj) (METRIC S) (MM) (UNOAdj) (METRIC S) (MM)
P-WEV6SM-AE M12X1.5 M14X1.5 6 P-WEV6SUN-AE 7/16” M14X1.5 6
P-WEV8SM-AE M14X1.5 M16X1.5 8 P-WEV8SUN-AE 9/16” M16X1.5 8
P-WEV10SM-AE M16X1.5 M18X1.5 10 P-WEV10SUN-AE 9/16” M18X1.5 10
P-WEV12SM-AE M18X1.5 M20X1.5 12 P-WEV12SUN-AE 3/4” M20X1.5 12
P-WEV14SM-AE M20X1.5 M22X1.5 14 P-WEV14SUN-AE 7/8” M22X1.5 14
P-WEV16SM-AE M22X1.5 M24X1.5 16 P-WEV16SUN-AE 7/8” M24X1.5 16
P-WEV20SM-AE M27X2.0 M30X2.0 20 P-WEV20SUN-AE 1.1/16” M30X2.0 20
P-WEV25SM-AE M33X2.0 M36X2.0 25 P-WEV25SUN-AE 1.5/16” M36X2.0 25
P-WEV30SM-AE M42X2.0 M42X2.0 30 P-WEV30SUN-AE 1.5/8” M42X2.0 30
P-WEV38SM-AE M48X2.0 M52X2.0 38 P-WEV38SUN-AE 1.7/8” M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B17
