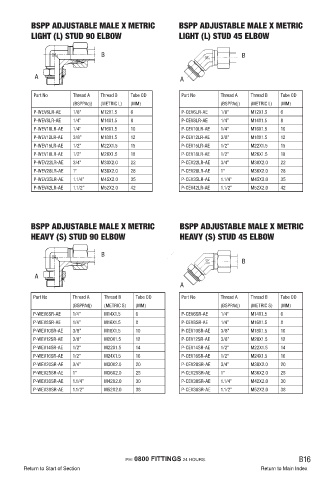

BSPP ADJUSTABLE MALE X METRIC BSPP ADJUSTABLE MALE X METRIC
LIGHT (L) STUD 90 ELBOW LIGHT (L) STUD 45 ELBOW

B B

A A

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPPAdj) (METRIC L) (MM) (BSPPAdj) (METRIC L) (MM)
P-WEV6LR-AE 1/8” M12X1.5 6 P-CEV6LR-AE 1/8” M12X1.5 6
P-WEV8LR-AE 1/4” M14X1.5 8 P-CEV8LR-AE 1/4” M14X1.5 8
P-WEV10LR-AE 1/4” M16X1.5 10 P-CEV10LR-AE 1/4” M16X1.5 10
P-WEV12LR-AE 3/8” M18X1.5 12 P-CEV12LR-AE 3/8” M18X1.5 12
P-WEV15LR-AE 1/2” M22X1.5 15 P-CEV15LR-AE 1/2” M22X1.5 15
P-WEV18LR-AE 1/2” M26X1.5 18 P-CEV18LR-AE 1/2” M26X1.5 18
P-WEV22LR-AE 3/4” M30X2.0 22 P-CEV22LR-AE 3/4” M30X2.0 22
P-WEV28LR-AE 1” M36X2.0 28 P-CEV28LR-AE 1” M36X2.0 28
P-WEV35LR-AE 1.1/4” M45X2.0 35 P-CEV35LR-AE 1.1/4” M45X2.0 35
P-WEV42LR-AE 1.1/2” M52X2.0 42 P-CEV42LR-AE 1.1/2” M52X2.0 42

BSPP ADJUSTABLE MALE X METRIC BSPP ADJUSTABLE MALE X METRIC
HEAVY (S) STUD 90 ELBOW HEAVY (S) STUD 45 ELBOW

B
B

A
A
Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPPAdj) (METRIC S) (MM) (BSPPAdj) (METRIC S) (MM)
P-WEV6SR-AE 1/4” M14X1.5 6 P-CEV6SR-AE 1/4” M14X1.5 6
P-WEV8SR-AE 1/4” M16X1.5 8 P-CEV8SR-AE 1/4” M16X1.5 8
P-WEV10SR-AE 3/8” M18X1.5 10 P-CEV10SR-AE 3/8” M18X1.5 10
P-WEV12SR-AE 3/8” M20X1.5 12 P-CEV12SR-AE 3/8” M20X1.5 12
P-WEV14SR-AE 1/2” M22X1.5 14 P-CEV14SR-AE 1/2” M22X1.5 14
P-WEV16SR-AE 1/2” M24X1.5 16 P-CEV16SR-AE 1/2” M24X1.5 16
P-WEV20SR-AE 3/4” M30X2.0 20 P-CEV20SR-AE 3/4” M30X2.0 20
P-WEV25SR-AE 1” M36X2.0 25 P-CEV25SR-AE 1” M36X2.0 25
P-WEV30SR-AE 1.1/4” M42X2.0 30 P-CEV30SR-AE 1.1/4” M42X2.0 30
P-WEV38SR-AE 1.1/2” M52X2.0 38 P-CEV38SR-AE 1.1/2” M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B16
