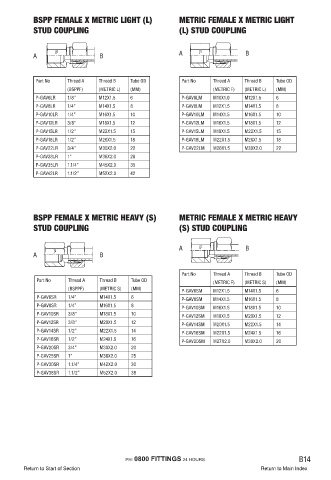

BSPP FEMALE X METRIC LIGHT (L) METRIC FEMALE X METRIC LIGHT
STUD COUPLING (L) STUD COUPLING

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPPF) (METRIC L) (MM) (METRIC F) (METRIC L) (MM)
P-GAV6LR 1/8” M12X1.5 6 P-GAV6LM M10X1.0 M12X1.5 6
P-GAV8LR 1/4” M14X1.5 8 P-GAV8LM M12X1.5 M14X1.5 8
P-GAV10LR 1/4” M16X1.5 10 P-GAV10LM M14X1.5 M16X1.5 10
P-GAV12LR 3/8” M18X1.5 12 P-GAV12LM M16X1.5 M18X1.5 12
P-GAV15LR 1/2” M22X1.5 15 P-GAV15LM M18X1.5 M22X1.5 15
P-GAV18LR 1/2” M26X1.5 18 P-GAV18LM M22X1.5 M26X1.5 18
P-GAV22LR 3/4” M30X2.0 22 P-GAV22LM M26X1.5 M30X2.0 22
P-GAV28LR 1” M36X2.0 28
P-GAV35LR 1.1/4” M45X2.0 35
P-GAV42LR 1.1/2” M52X2.0 42

BSPP FEMALE X METRIC HEAVY (S) METRIC FEMALE X METRIC HEAVY
STUD COUPLING (S) STUD COUPLING

A B
A B

Part No Thread A Thread B Tube OD
Part No Thread A Thread B Tube OD (METRIC F) (METRIC S) (MM)
(BSPPF) (METRIC S) (MM) P-GAV6SM M12X1.5 M14X1.5 6
P-GAV6SR 1/4” M14X1.5 6 P-GAV8SM M14X1.5 M16X1.5 8
P-GAV8SR 1/4” M16X1.5 8 P-GAV10SM M16X1.5 M18X1.5 10
P-GAV10SR 3/8” M18X1.5 10 P-GAV12SM M18X1.5 M20X1.5 12
P-GAV12SR 3/8” M20X1.5 12 P-GAV14SM M20X1.5 M22X1.5 14
P-GAV14SR 1/2” M22X1.5 14 P-GAV16SM M22X1.5 M24X1.5 16
P-GAV16SR 1/2” M24X1.5 16 P-GAV20SM M27X2.0 M30X2.0 20
P-GAV20SR 3/4” M30X2.0 20
P-GAV25SR 1” M36X2.0 25
P-GAV30SR 1.1/4” M42X2.0 30
P-GAV38SR 1.1/2” M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B14
