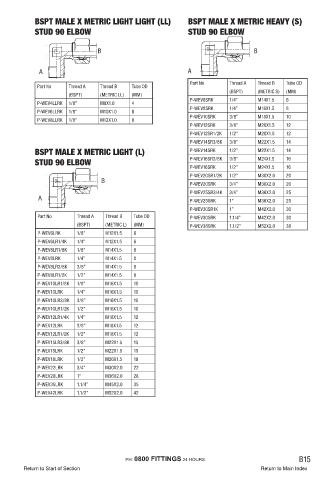

Page 81 - Fluid Fitting 2018_extended

BSPT MALE X METRIC LIGHT LIGHT (LL) BSPT MALE X METRIC HEAVY (S)
STUD 90 ELBOW STUD 90 ELBOW

B B

A A
Part No Thread A Thread B Tube OD
Part No Thread A Thread B Tube OD
(BSPT) (METRIC S) (MM)
(BSPT) (METRIC LL) (MM)
P-WEV6SRK 1/4” M14X1.5 6
P-WEV4LLRK 1/8” M8X1.0 4
P-WEV8SRK 1/4” M16X1.5 8
P-WEV6LLRK 1/8” M10X1.0 6
P-WEV10SRK 3/8” M18X1.5 10
P-WEV8LLRK 1/8” M12X1.0 8
P-WEV12SRK 3/8” M20X1.5 12
P-WEV12SR1/2K 1/2” M20X1.5 12
P-WEV14SR3/8K 3/8” M22X1.5 14
BSPT MALE X METRIC LIGHT (L) P-WEV14SRK 1/2” M22X1.5 14

STUD 90 ELBOW P-WEV16SR3/8K 3/8” M24X1.5 16
P-WEV16SRK 1/2” M24X1.5 16
P-WEV20SR1/2K 1/2” M30X2.0 20
B
P-WEV20SRK 3/4” M30X2.0 20
P-WEV25SR3/4K 3/4” M36X2.0 25
A P-WEV25SRK 1” M36X2.0 25

P-WEV30SR1K 1” M42X2.0 30
Part No Thread A Thread B Tube OD P-WEV30SRK 1.1/4” M42X2.0 30
(BSPT) (METRIC L) (MM) P-WEV38SRK 1.1/2” M52X2.0 38
P-WEV6LRK 1/8” M12X1.5 6
P-WEV6LR1/4K 1/4” M12X1.5 6
P-WEV8LR1/8K 1/8” M14X1.5 8
P-WEV8LRK 1/4” M14X1.5 8
P-WEV8LR3/8K 3/8” M14X1.5 8
P-WEV8LR1/2K 1/2” M14X1.5 8
P-WEV10LR1/8K 1/8” M16X1.5 10
P-WEV10LRK 1/4” M16X1.5 10
P-WEV10LR3/8K 3/8” M16X1.5 10
P-WEV10LR1/2K 1/2” M16X1.5 10
P-WEV12LR1/4K 1/4” M18X1.5 12
P-WEV12LRK 3/8” M18X1.5 12
P-WEV12LR1/2K 1/2” M18X1.5 12
P-WEV15LR3/8K 3/8” M22X1.5 15
P-WEV15LRK 1/2” M22X1.5 15
P-WEV18LRK 1/2” M26X1.5 18
P-WEV22LRK 3/4” M30X2.0 22
P-WEV28LRK 1” M36X2.0 28
P-WEV35LRK 1.1/4” M45X2.0 35
P-WEV42LRK 1.1/2” M52X2.0 42

PH: 0800 FITTINGS 24 HOURS. B15
