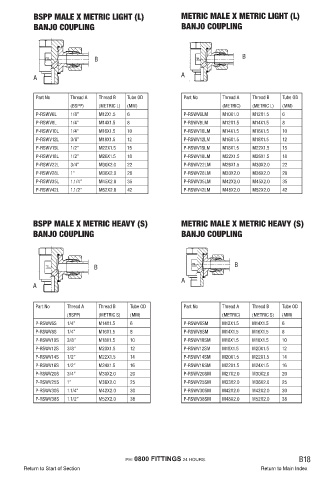

BSPP MALE X METRIC LIGHT (L) METRIC MALE X METRIC LIGHT (L)
BANJO COUPLING BANJO COUPLING

B B

A A

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPP) (METRIC L) (MM) (METRIC) (METRIC L) (MM)
P-RSWV6L 1/8” M12X1.5 6 P-RSWV6LM M10X1.0 M12X1.5 6
P-RSWV8L 1/4” M14X1.5 8 P-RSWV8LM M12X1.5 M14X1.5 8
P-RSWV10L 1/4” M16X1.5 10 P-RSWV10LM M14X1.5 M16X1.5 10
P-RSWV12L 3/8” M18X1.5 12 P-RSWV12LM M16X1.5 M18X1.5 12
P-RSWV15L 1/2” M22X1.5 15 P-RSWV15LM M18X1.5 M22X1.5 15
P-RSWV18L 1/2” M26X1.5 18 P-RSWV18LM M22X1.5 M26X1.5 18
P-RSWV22L 3/4” M30X2.0 22 P-RSWV22LM M26X1.5 M30X2.0 22
P-RSWV28L 1” M36X2.0 28 P-RSWV28LM M33X2.0 M36X2.0 28
P-RSWV35L 1.1/4” M45X2.0 35 P-RSWV35LM M42X2.0 M45X2.0 35
P-RSWV42L 1.1/2” M52X2.0 42 P-RSWV42LM M48X2.0 M52X2.0 42

BSPP MALE X METRIC HEAVY (S) METRIC MALE X METRIC HEAVY (S)

BANJO COUPLING BANJO COUPLING

B B
A
A

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPP) (METRIC S) (MM) (METRIC) (METRIC S) (MM)
P-RSWV6S 1/4” M14X1.5 6 P-RSWV6SM M12X1.5 M14X1.5 6
P-RSWV8S 1/4” M16X1.5 8 P-RSWV8SM M14X1.5 M16X1.5 8
P-RSWV10S 3/8” M18X1.5 10 P-RSWV10SM M16X1.5 M18X1.5 10
P-RSWV12S 3/8” M20X1.5 12 P-RSWV12SM M18X1.5 M20X1.5 12
P-RSWV14S 1/2” M22X1.5 14 P-RSWV14SM M20X1.5 M22X1.5 14
P-RSWV16S 1/2” M24X1.5 16 P-RSWV16SM M22X1.5 M24X1.5 16
P-RSWV20S 3/4” M30X2.0 20 P-RSWV20SM M27X2.0 M30X2.0 20
P-RSWV25S 1” M36X2.0 25 P-RSWV25SM M33X2.0 M36X2.0 25
P-RSWV30S 1.1/4” M42X2.0 30 P-RSWV30SM M42X2.0 M42X2.0 30
P-RSWV38S 1.1/2” M52X2.0 38 P-RSWV38SM M48X2.0 M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B18
