Maintenance

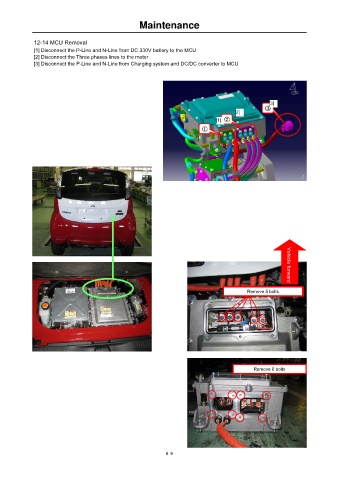

12-14 MCU Removal
[1] Disconnect the P-Line and N-Line from DC 330V battery to the MCU
[2] Disconnect the Three phases lines to the motor
[3] Disconnect the P-Line and N-Line from Charging system and DC/DC converter to MCU

[3]
[2]
[1]

Remove 5 bolts Vehicle forward

Remove 8 bolts
